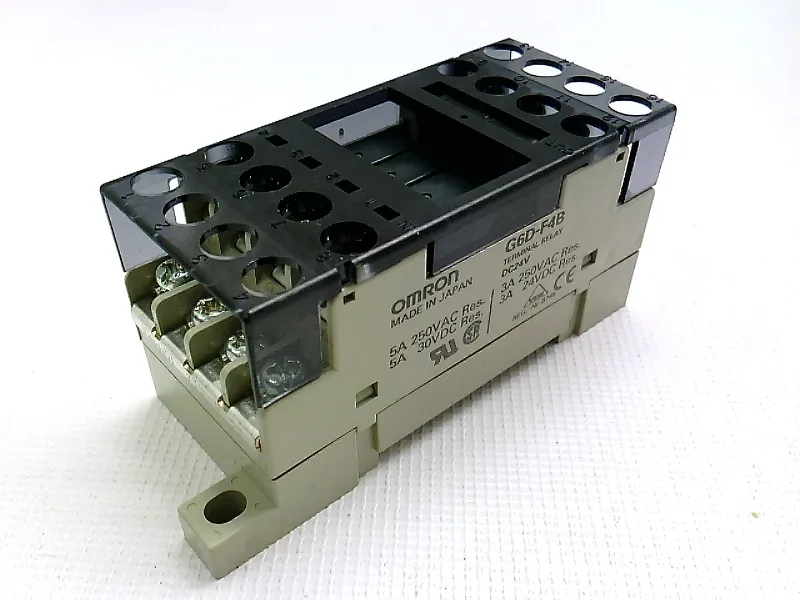

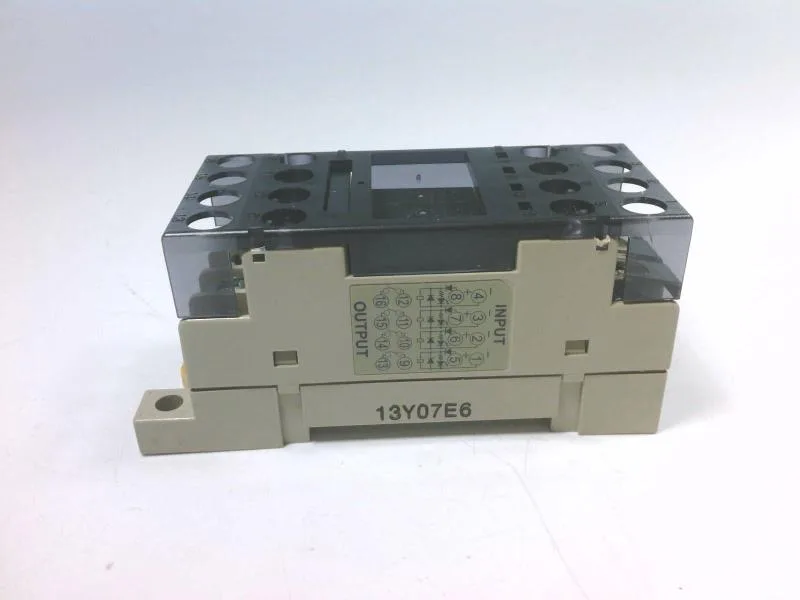

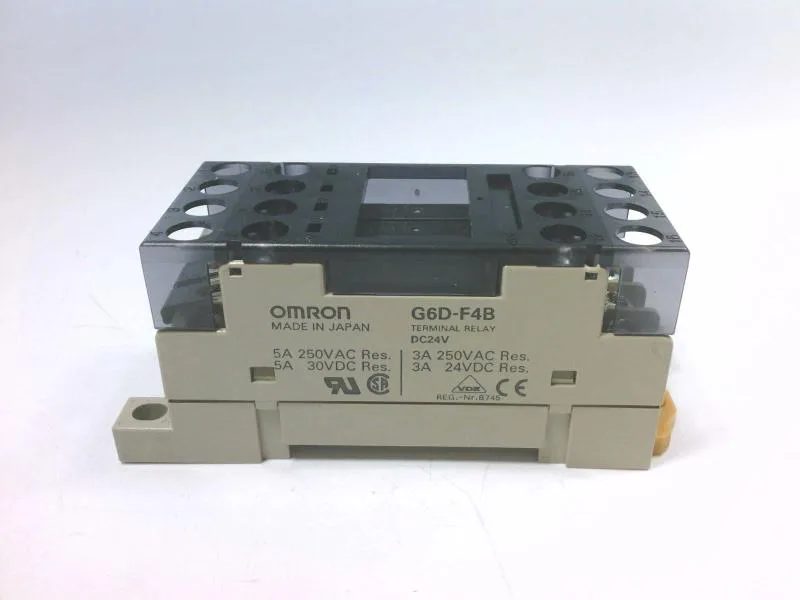

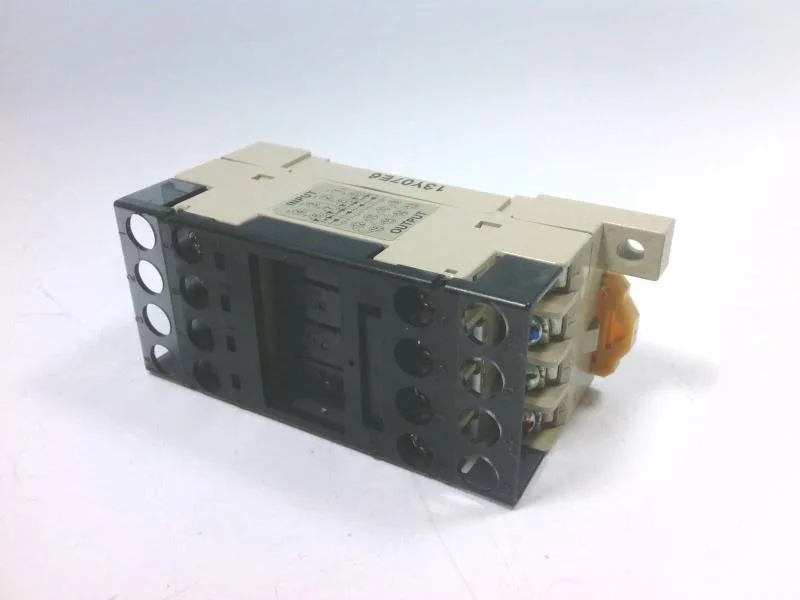

Omron G6D, DIN-rail relay, G6D-F4B DC24, SPST 5 A, coil 12/24 VDC, LED indicator.
Omron G6D-F4B DC24 DIN Rail Relay, 5 A
MPNG6D-F4B DC24
Omron G6D, DIN-rail relay, G6D-F4B DC24, SPST 5 A, coil 12/24 VDC, LED indicator.
$131.99 – $292.09Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | G6D |
Contacts & Switching
| Parameter | Value |
|---|---|
| Contact form | SPST |
| Contact rating (AC) | 5 A @ 250V |
| Mechanical life (operations) | 20,000,000 |
| Electrical life (operations) | 200,000 |
Coil & Supply
| Parameter | Value |
|---|---|
| Coil voltage | 12V DC; 24V DC |
Electrical
| Parameter | Value |
|---|---|
| Dielectric strength | 2,000V AC, 50/60 Hz for 1 min Between Coil and Contacts; 750V AC, 50/60 Hz for 1 min Between Contacts of the Same Polarity |
Function & Indication
| Parameter | Value |
|---|---|
| Status indicator | LED Indicator |
| Push-to-test button | No Test Button |
Mechanical
| Parameter | Value |
|---|---|
| Relay mounting style | DIN-Rail |
| Number of pins/terminals | 16 |
Other specifications
| Parameter | Value |
|---|---|
| Contact rating | 5 A @ 30V |
| Coil voltage (Nominal@60Hz) | 12V DC; 24V DC |
Product details
Frequently asked questions
What series does the G6D-F4B DC24 belong to?
It belongs to the Omron G6D series of general-purpose relays.
What are the coil voltage options for the G6D-F4B DC24?
The catalog shows coil voltage of 12 VDC or 24 VDC. The same part works for either voltage.
MPN
G6D-F4B DC24
