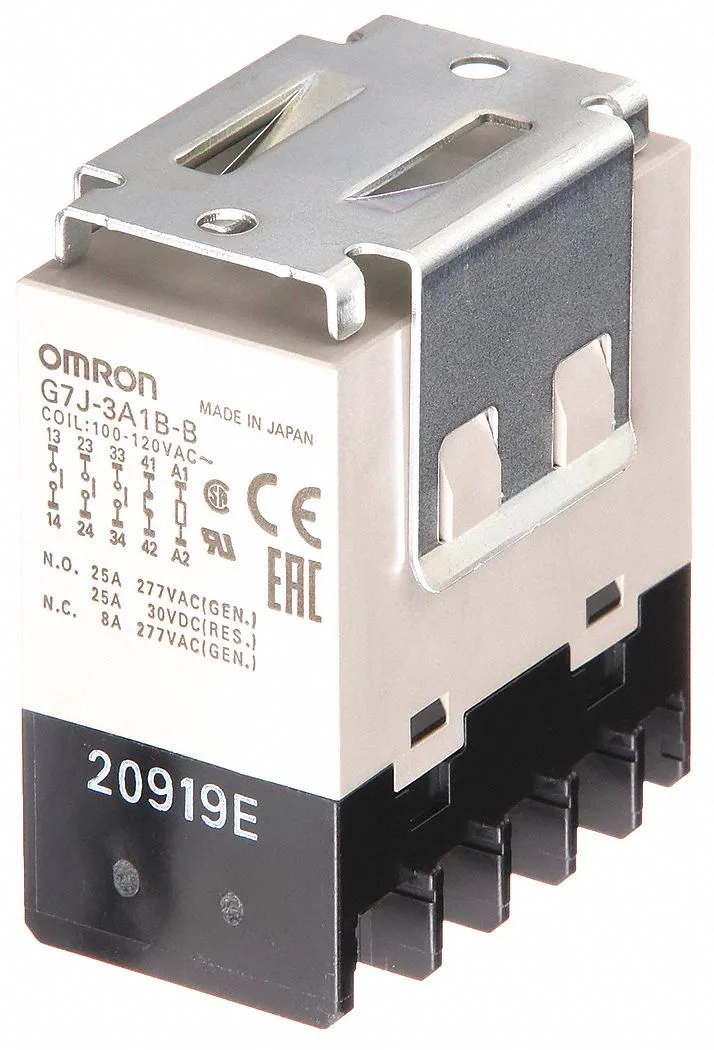

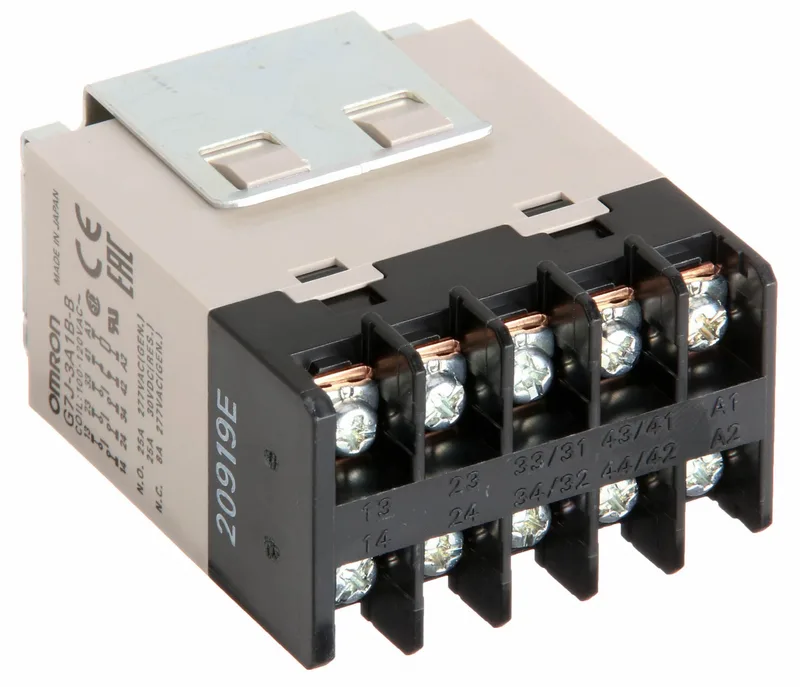

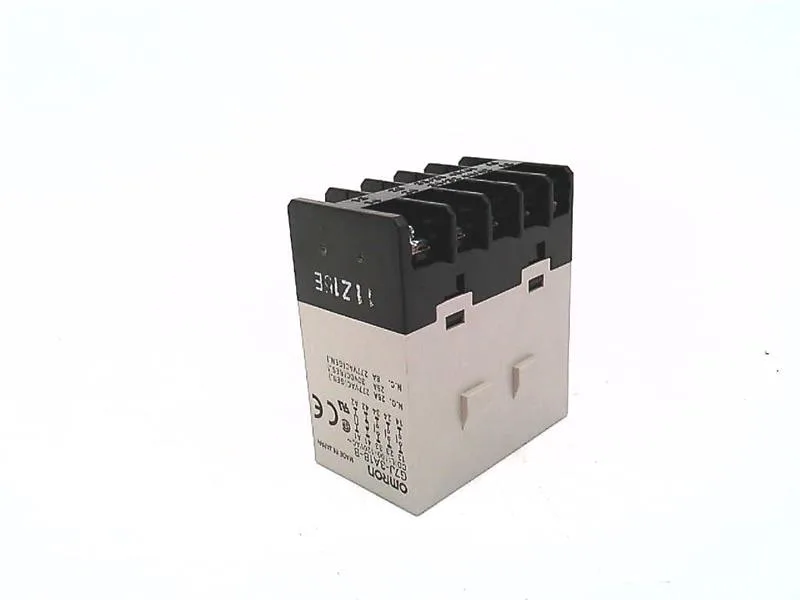

Omron G7J-3A1B-B-W1-AC100/120 — General Purpose Relays

Omron G7J-3A1B-B-W1-AC100/120

MPNG7J-3A1B-B-W1-AC100/120

OMRON Enclosed Power Relay: Bracket Mounted, 25 A Current Rating, 100/120V AC, 10 Pins/Terminals

$64.47Ref. price · indicative, final on quote
Omron G7J-3A1B-B-W1-AC100/120 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

G7J-3A1B-B-W1-AC100/120 — Identification
ParameterValue
SeriesG7J Series
G7J-3A1B-B-W1-AC100/120 — Contacts & Switching
ParameterValue
Contact formSPST-NC; 3PST-NO
Contact rating (AC)8 A @ 240V (NC)25 A @ 240V (NO)
Mechanical life (operations)1,000,000
Electrical life (operations)100,000
G7J-3A1B-B-W1-AC100/120 — Coil & Supply
ParameterValue
Coil voltage100/120V AC
G7J-3A1B-B-W1-AC100/120 — Electrical
ParameterValue
Dielectric strength2,000V AC between Contacts of the Same Polarity; 4,000V AC between Coil and Contact; 4,000V AC between Contacts of Different Polarity
G7J-3A1B-B-W1-AC100/120 — Function & Indication
ParameterValue
Status indicatorNo Indicator
Push-to-test buttonManual Push Test Button
G7J-3A1B-B-W1-AC100/120 — Mechanical
ParameterValue
Relay mounting styleBracket
Electrical connection typeScrew
Number of pins/terminals10
