Omron G7J-4A-B AC200/240 — General Purpose Relays

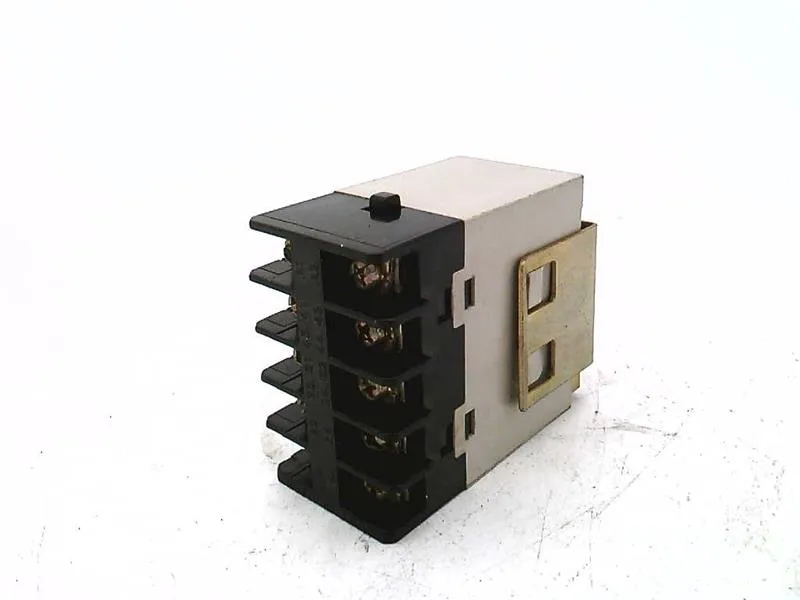

Omron G7J-4A-B AC200/240 Power Relay, 25 A, 4PST-NO

MPNG7J-4A-B AC200/240

Omron G7J Series power relay, G7J-4A-B AC200/240, 4PST-NO, 25 A @ 240 V AC, 200/240 V AC coil, bracket mount.

$26.67Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

G7J-4A-B AC200/240 — Identification
ParameterValue
SeriesG7J Series
G7J-4A-B AC200/240 — Contacts & Switching
ParameterValue
Contact form4PST-NO
Contact rating (AC)25 A @ 240V
Mechanical life (operations)1,000,000
Electrical life (operations)100,000
G7J-4A-B AC200/240 — Coil & Supply
ParameterValue
Coil voltage200/240V AC
G7J-4A-B AC200/240 — Electrical
ParameterValue
Dielectric strength2000 V AC, 50/60 Hz for 1 Minute Between Contacts of the Same Polarity; 4000 V AC, 50/60 Hz for 1 Minute Between Coil and Contacts; 4000 V AC, 50/60 Hz for 1 Minute Between Contacts of Different Polarity
G7J-4A-B AC200/240 — Function & Indication
ParameterValue
Push-to-test buttonManual Push Test Button
G7J-4A-B AC200/240 — Mechanical
ParameterValue
Relay mounting styleBracket
Electrical connection typeScrew
Number of pins/terminals10
G7J-4A-B AC200/240 — Other specifications
ParameterValue
Motor ratedYes
Current rating9 mA; 10.8 mA
Contact rating100.00 mA @ 24V25 A @ 30V
Horsepower @ 120V AC1-1/2 hp
Horsepower @ 240V AC3 hp
Coil voltage (Nominal@60Hz)240V AC

Product details

The G7J-4A-B AC200/240 is a 4PST-NO power relay from Omron's G7J Series, rated to switch 25 A at 240 V AC — enough for motor loads up to 3 hp at 240 V AC or 1-1/2 hp at 120 V AC. The 200/240 V AC coil draws 9 mA at 200 V and 10.8 mA at 240 V, so it lands in standard 200–240 V line-voltage control circuits without a separate transformer.

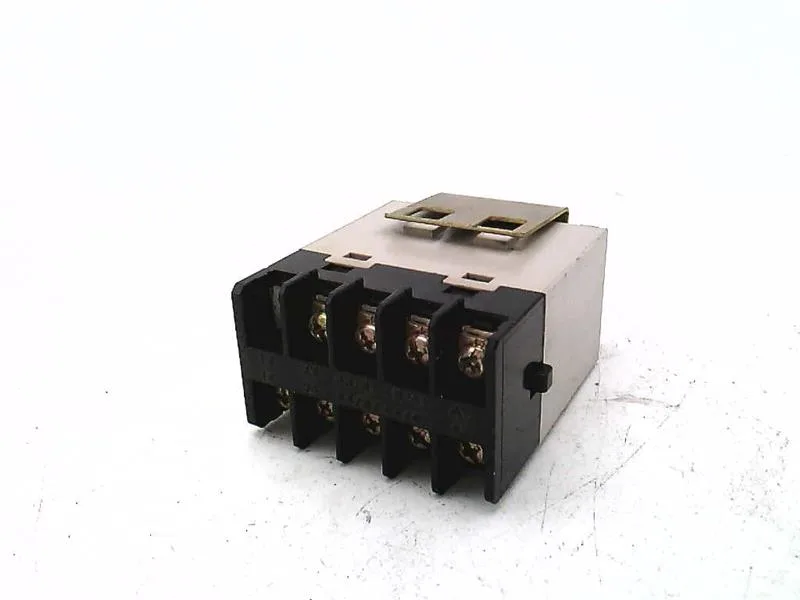

Bracket-mounted with 10 screw terminals — no DIN-rail clip, so plan for panel drilling or a separate mounting plate. The push-to-test button on the relay body simplifies commissioning checks without needing to energize the coil. Dielectric strength is 4000 V AC between coil and contacts, which gives solid isolation for line-voltage switching in control panels.

Frequently asked questions

What are the key contact ratings for this relay?

The main contact rating is 25 A at 240 V AC. For DC loads, it is rated 25 A at 30 V and 100 mA at 24 V. Motor ratings are 3 hp at 240 V AC and 1-1/2 hp at 120 V AC.

What coil voltage does this relay use?

The coil is rated for 200/240 V AC, drawing 9 mA at 200 V and 10.8 mA at 240 V. Nominal at 60 Hz is 240 V AC.

MPN
G7J-4A-B AC200/240
