Omron G7J-4A-B-W1-AC200/240 — General Purpose Relays

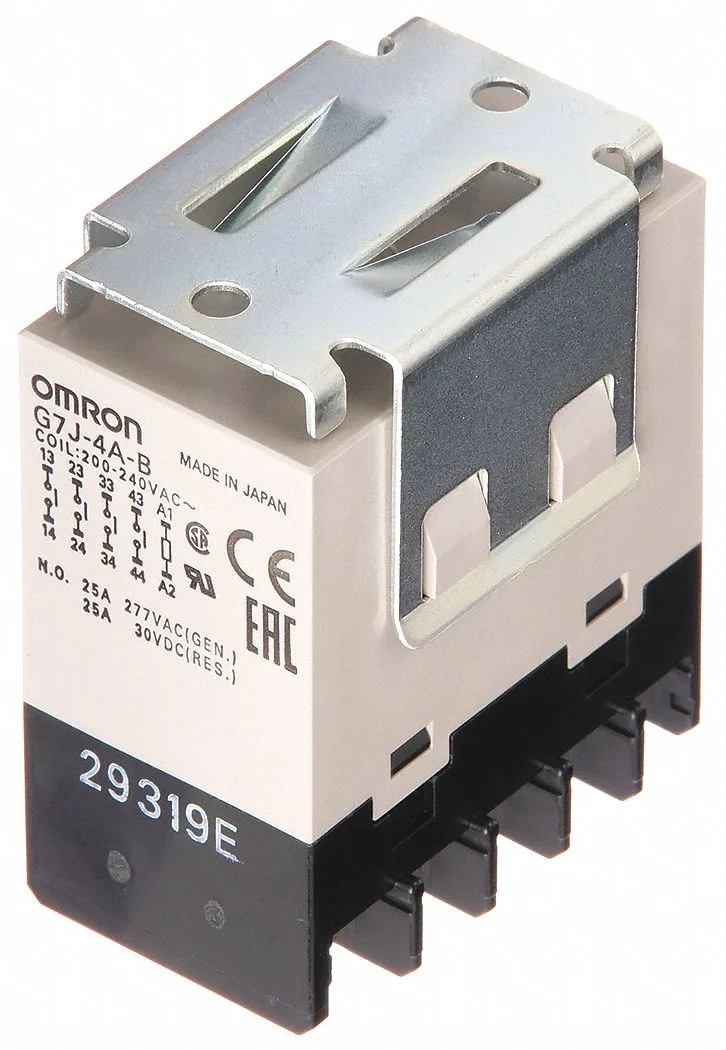

Omron G7J-4A-B-W1-AC200/240 Enclosed Power Relay, 25 A, 4PST

MPNG7J-4A-B-W1-AC200/240

Omron G7J Series, Enclosed Power Relay, Bracket Mounted, 4PST-NO, 25 A, Coil 200/240V AC, Screw Terminals.

$62.97 – $82.19Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

G7J-4A-B-W1-AC200/240 — Identification
ParameterValue
SeriesG7J Series
G7J-4A-B-W1-AC200/240 — Contacts & Switching
ParameterValue
Contact form4PST-NO
Contact rating (AC)8 A @ 240V (NC)25 A @ 240V (NO)
Mechanical life (operations)1,000,000
Electrical life (operations)100,000
G7J-4A-B-W1-AC200/240 — Coil & Supply
ParameterValue
Coil voltage200/240V AC
G7J-4A-B-W1-AC200/240 — Electrical
ParameterValue
Dielectric strength2,000V AC between Contacts of the Same Polarity; 4,000V AC between Coil and Contact; 4,000V AC between Contacts of Different Polarity
G7J-4A-B-W1-AC200/240 — Function & Indication
ParameterValue
Status indicatorNo Indicator
Push-to-test buttonManual Push Test Button
G7J-4A-B-W1-AC200/240 — Mechanical
ParameterValue
Relay mounting styleBracket
Electrical connection typeScrew
Number of pins/terminals10

Product details

The Omron G7J-4A-B-W1-AC200/240 is an enclosed power relay from the G7J Series, bracket-mounted with screw terminals. Its 4PST-NO contact form carries 25 A at 240 V AC on the normally-open poles, while the NC poles are rated 8 A at the same voltage — a split that matters if you're using the NC leg for a safety interlock or auxiliary drop-out signal. The coil pulls in on 200/240 V AC; there's no DC coil variant in this housing, so verify your control voltage before wiring.

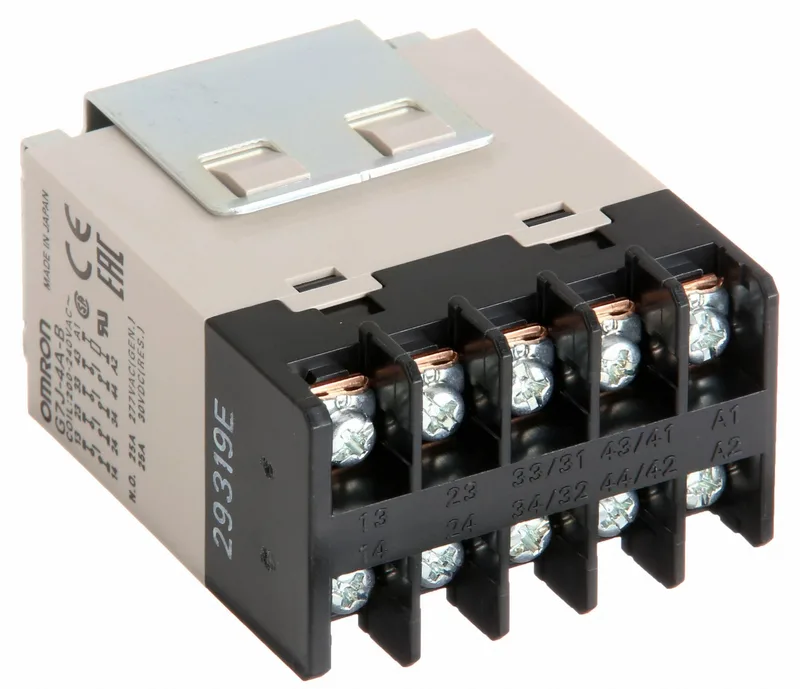

Bracket mounting bolts directly to a panel. Screw terminals accept up to 10 wires. Dielectric strength is 4,000 V AC between coil and contacts, and 2,000 V AC between same-polarity contacts. The manual push-to-test button cycles contacts without energizing the coil.

Frequently asked questions

Will G7J-4A-B-W1-AC200/240 drop into a panel specified around MY2ZN-D2 DC24?

No — the G7J-4A-B-W1-AC200/240 is a bracket-mounted power relay with screw terminals, while the MY2ZN-D2 DC24 is a socket-mounted signal relay with pin terminals. Different footprint, different wiring method, and different current class. The G7J handles motor loads (3 hp) that the MY2ZN cannot.
