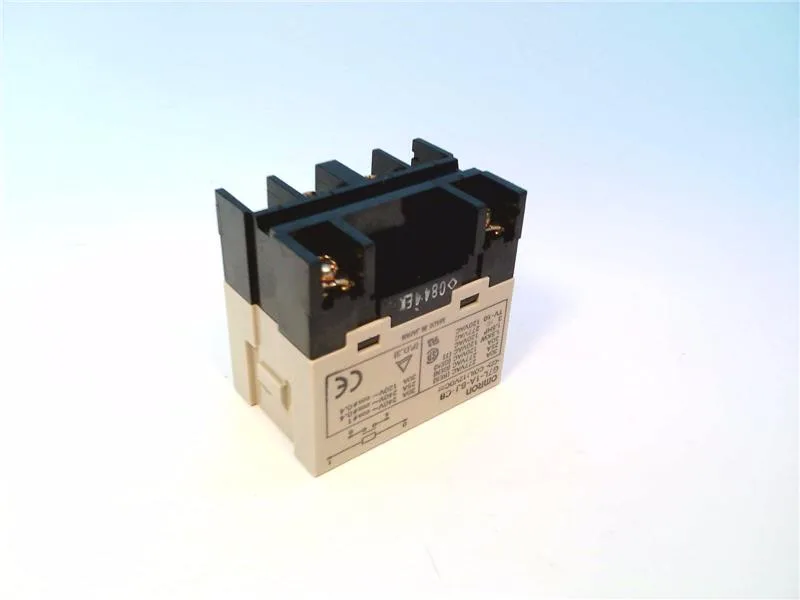

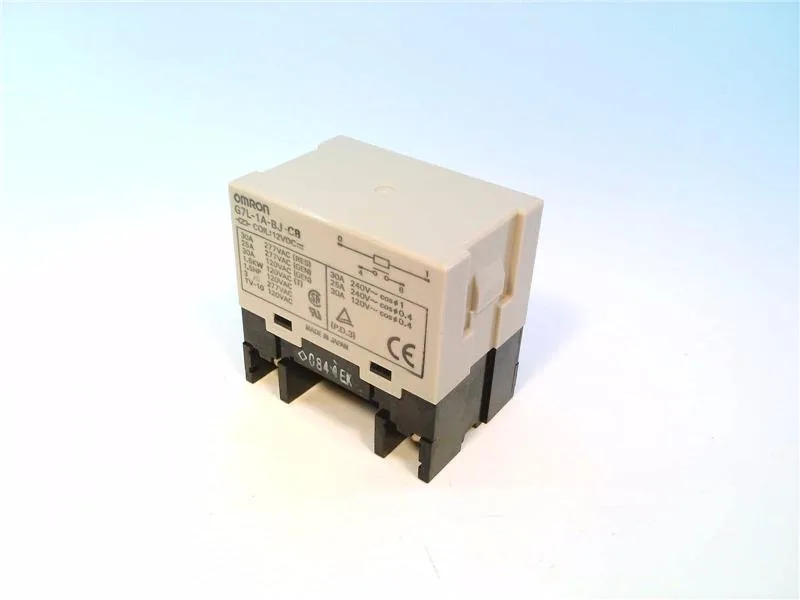

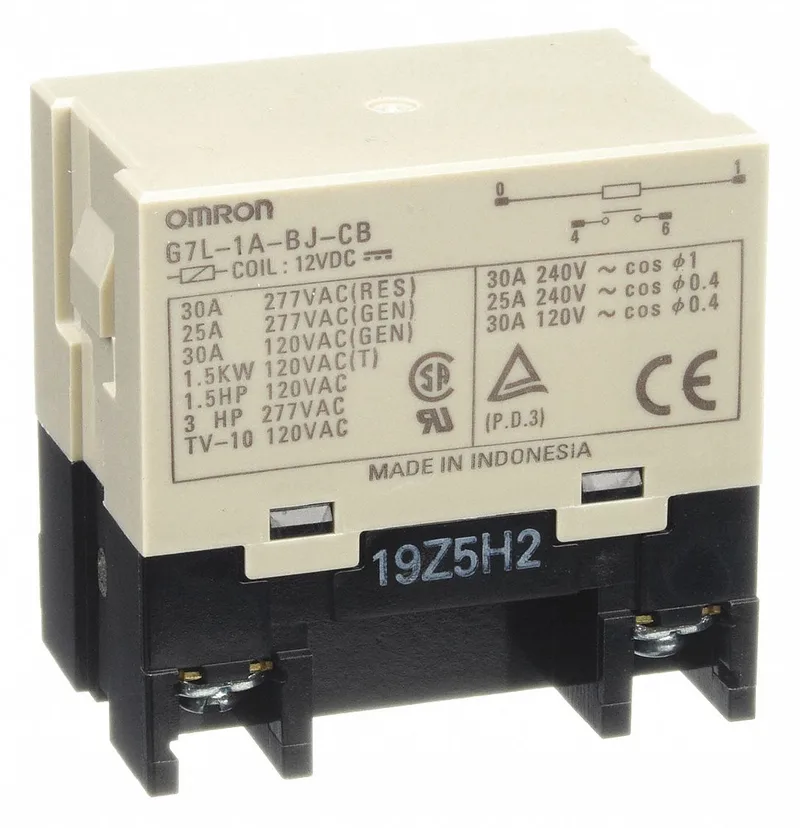

Omron G7L-1A-BJ-CB-DC12
MPNG7L-1A-BJ-CB-DC12
OMRON Enclosed Power Relay: Bracket Mounted, 30 A Current Rating, 12V DC, 4 Pins/Terminals, SPST-NO
$22.92 – $24.42Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | G7L Series |
Contacts & Switching
| Parameter | Value |
|---|---|
| Contact form | SPST-NO |
| Contact rating (AC) | 30 A @ 240V |
| Mechanical life (operations) | 1,000,000 |
| Electrical life (operations) | 100,000 |
Coil & Supply
| Parameter | Value |
|---|---|
| Coil voltage | 12V DC |
Electrical
| Parameter | Value |
|---|---|
| Dielectric strength | 2,000V AC between Contacts of Different Poles (DPST-NO Type); 2,000V AC between Contacts of Same Pole; 4,000V AC min./5,000V AC Typical between Coil and Contacts |
Function & Indication
| Parameter | Value |
|---|---|
| Status indicator | No Indicator |
| Push-to-test button | Manual Push Test Button |
Mechanical
| Parameter | Value |
|---|---|
| Relay mounting style | Bracket |
| Electrical connection type | Screw |
| Number of pins/terminals | 4 |
MPN
G7L-1A-BJ-CB-DC12
