Omron G7L-1A-BUBJ-CB-AC24 — General Purpose Relays

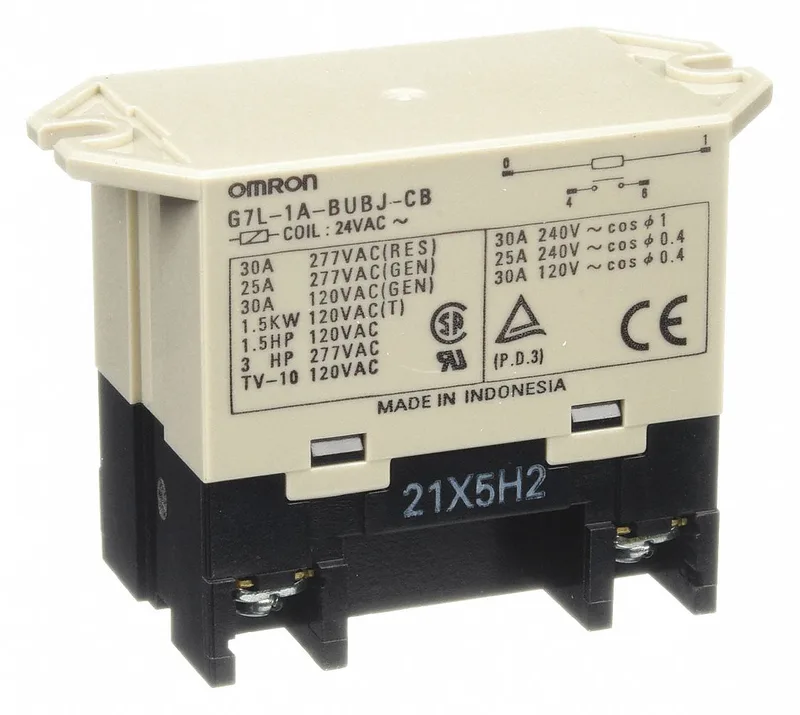

Omron G7L-1A-BUBJ-CB-AC24

MPNG7L-1A-BUBJ-CB-AC24

OMRON Enclosed Power Relay: Surface (Top Flange) Mounted, 30 A Current Rating, 24V AC, SPST-NO

$22.56 – $34.07Ref. price · indicative, final on quote
Omron G7L-1A-BUBJ-CB-AC24 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

G7L-1A-BUBJ-CB-AC24 — Identification
ParameterValue
SeriesG7L Series
G7L-1A-BUBJ-CB-AC24 — Contacts & Switching
ParameterValue
Contact formSPST-NO
Contact rating (AC)30 A @ 240V
Mechanical life (operations)1,000,000
Electrical life (operations)100,000
G7L-1A-BUBJ-CB-AC24 — Coil & Supply
ParameterValue
Coil voltage24V AC
G7L-1A-BUBJ-CB-AC24 — Electrical
ParameterValue
Dielectric strength2,000V AC between Contacts of Different Poles (DPST-NO Type); 2,000V AC between Contacts of Same Pole; 4,000V AC min./5,000V AC Typical between Coil and Contacts
G7L-1A-BUBJ-CB-AC24 — Function & Indication
ParameterValue
Status indicatorNo Indicator
Push-to-test buttonManual Push Test Button
G7L-1A-BUBJ-CB-AC24 — Mechanical
ParameterValue
Relay mounting styleSurface (Top Flange)
Electrical connection typeScrew
Number of pins/terminals4
G7L-1A-BUBJ-CB-AC24 — Other specifications
ParameterValue
SealingEnclosed
Motor ratedYes
Current rating30 A
Horsepower @ 120V AC1-1/2 hp
Horsepower @ 240V AC3 hp
MPN
G7L-1A-BUBJ-CB-AC24
