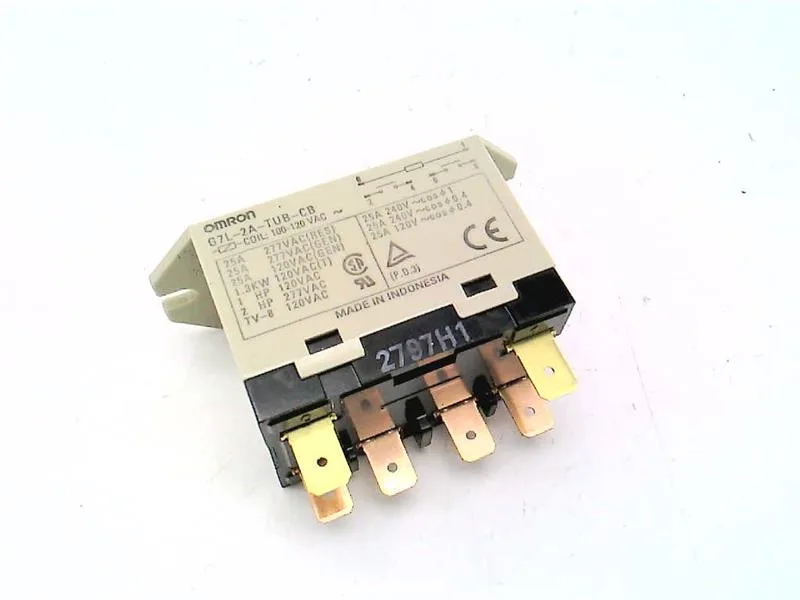

Omron G7L-2A-TUB-CB-AC100/120
MPNG7L-2A-TUB-CB-AC100/120
OMRON General Purpose Relays: 100/120V AC, 6 Pins/Terminals, DPST-NO
$25.49 – $48.67Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | G7L |
Contacts & Switching
| Parameter | Value |
|---|---|
| Contact form | DPST-NO |
| Contact rating (AC) | 25 A @ 240V |
| Mechanical life (operations) | 1,000,000 |
| Electrical life (operations) | 100,000 |
Coil & Supply
| Parameter | Value |
|---|---|
| Coil voltage | 100/120V AC |
Electrical
| Parameter | Value |
|---|---|
| Dielectric strength | 2,000V AC, 50/60 Hz for 1 Minute Between Contacts of Different Poles (DPST-NO type); 2,000V AC, 50/60 Hz for 1 Minute Between Contacts of same Pole; 4,000V AC, min./5,000V AC Typical, 50/60 Hz for 1 Minute Between Coil and Contacts |
Function & Indication
| Parameter | Value |
|---|---|
| Status indicator | No Indicator |
| Push-to-test button | No Test Button |
Mechanical
| Parameter | Value |
|---|---|
| Electrical connection type | Tab |
| Number of pins/terminals | 6 |
Other specifications
| Parameter | Value |
|---|---|
| Motor rated | Yes |
| Contact rating | 100 mA @ 5V |
| Horsepower @ 120V AC | 1-1/2 hp |
| Coil voltage (Nominal@60Hz) | 120V AC |
MPN
G7L-2A-TUB-CB-AC100/120
