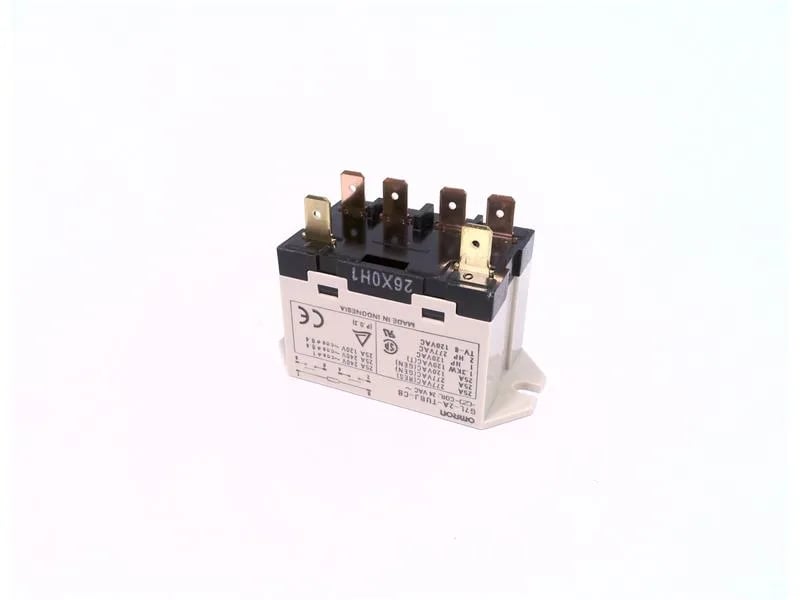

Omron G7L-2A-TUBJ-CB-AC24
MPNG7L-2A-TUBJ-CB-AC24
OMRON Enclosed Power Relay: Surface (Top Flange) Mounted, 30 A Current Rating, 24V AC, DPST-NO
$18.72 – $29.88Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
Identification
| Parameter | Value |
|---|---|
| Series | G7L Series |
Contacts & Switching
| Parameter | Value |
|---|---|
| Contact form | DPST-NO |
| Contact rating (AC) | 25 A @ 240V |
| Mechanical life (operations) | 1,000,000 |
| Electrical life (operations) | 100,000 |
Coil & Supply
| Parameter | Value |
|---|---|
| Coil voltage | 24V AC |
Electrical
| Parameter | Value |
|---|---|
| Dielectric strength | 2,000V AC between Contacts of Different Poles (DPST-NO Type); 2,000V AC between Contacts of Same Pole; 4,000V AC min./5,000V AC Typical between Coil and Contacts |
Function & Indication
| Parameter | Value |
|---|---|
| Status indicator | No Indicator |
| Push-to-test button | Manual Push Test Button |
Mechanical
| Parameter | Value |
|---|---|
| Relay mounting style | Surface (Top Flange) |
| Electrical connection type | Tab |
| Number of pins/terminals | 6 |
Other specifications
| Parameter | Value |
|---|---|
| Sealing | Enclosed |
| Motor rated | Yes |
| Current rating | 30 A |
| Horsepower @ 120V AC | 1-1/2 hp |
| Horsepower @ 240V AC | 3 hp |
MPN
G7L-2A-TUBJ-CB-AC24
