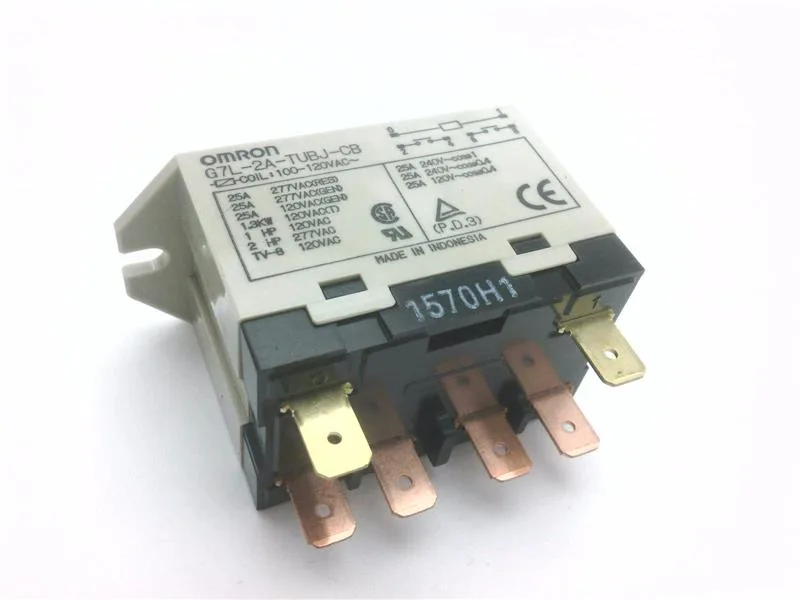

Omron G7L2ATUBJCBAC100/120
MPNG7L2ATUBJCBAC100/120
OMRON Enclosed Power Relay: Surface (Top Flange) Mounted, 30 A Current Rating, 100/120V AC, DPST-NO
$17.84 – $25.90Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | G7L Series |
| Electrical connection type | Tab |
| Coil voltage | 100/120V AC |
| Coil voltage (Nominal@60Hz) | 120V AC |
| Current rating | 30 A |
| Horsepower @ 120V AC | 1-1/2 hp |
| Horsepower @ 240V AC | 3 hp |
| Contact form | DPST-NO |
| Relay mounting style | Surface (Top Flange) |
| Number of pins (Terminals) | 6 |
| Electrical operating durability | 100,000 |
| Mechanical operating durability | 1,000,000 |
All specifications
| Parameter | Value |
|---|---|
| Brand | OMRON |
| Sealing | Enclosed |
| Motor rated | Yes |
| Status indicator | No Indicator |
| Contact rating | 25 A @ 240V |
| Dielectric strength | 2,000V AC between Contacts of Different Poles (DPST-NO Type); 2,000V AC between Contacts of Same Pole; 4,000V AC min./5,000V AC Typical between Coil and Contacts |
| Push-To-Test button | Manual Push Test Button |
MPN
G7L2ATUBJCBAC100/120
