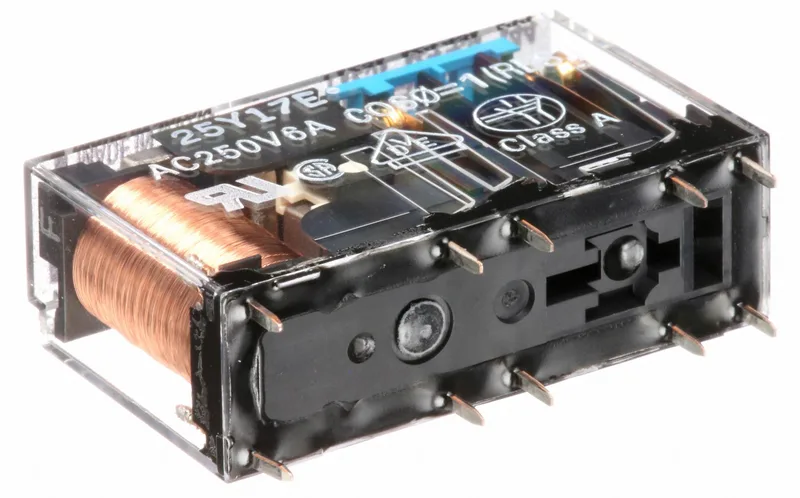

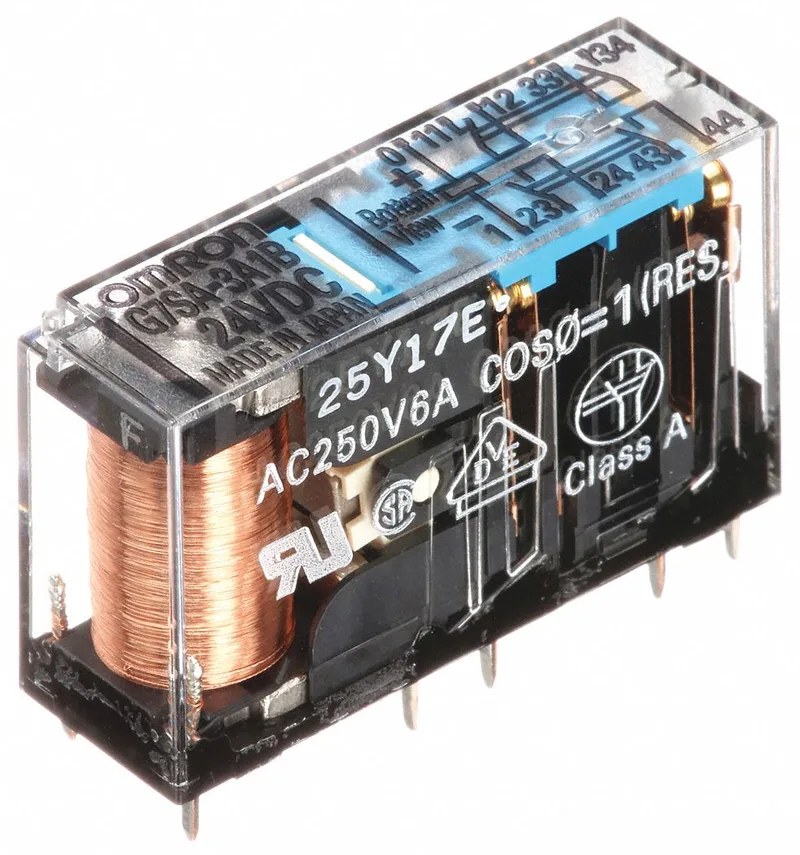

Omron G7SA-3A1B DC24
MPNG7SA-3A1B DC24
OMRON Force Guided Relay: Socket Mounted, 24V DC, 6 A Rating, 10 Pins/Terminals, 3PST-NO/SPST-NC
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | G7SA Series |
| Electrical connection type | Pin |
| Coil voltage | 24V DC |
| Current rating | 6 A |
| Maximum switching current | 6 A |
| Power consumption | 360 mW |
| Contact form | SPST-NC; 3PST-NO |
| IP rating | IP40 |
| Relay mounting style | Socket |
| Number of pins (Terminals) | 10 |
| Response time | 10 msec |
| Maximum operating temperature | 185 °F |
All specifications
| Parameter | Value |
|---|---|
| Minimum operating temperature | -40 °F |
| Body depth (REWORK) | 0.94 in |
| Body width (REWORK) | 1.57 in |
| Body height (REWORK) | 0.51 in |
| Electrical operating durability | 100,000 |
| Mechanical operating durability | 10,000,000 |
| Standards | CSA Certified; EN; UL Listed |
| Brand | OMRON |
| Features | Additional Push-In Plus Terminal Sockets; EN/IEC 61810-3,Certified by VDE; Interlocking Circuit Compatibility; Machinery Directive; Reinforced Insulation Between Inputs and Outputs; Reinforced Insulation Between Some Poles of Different Polarity; Simplified PWB Pattern Design |
| Coil resistance | 1,600 ohm |
| Contact rating | 6 A @ 250V |
| Resistance properties | Shock-Resistant; Vibration-Resistant |
| Compatible with manufacturer model number | P7SA-10F; P7SA-10F-ND DC24 |
MPN
G7SA-3A1B DC24
