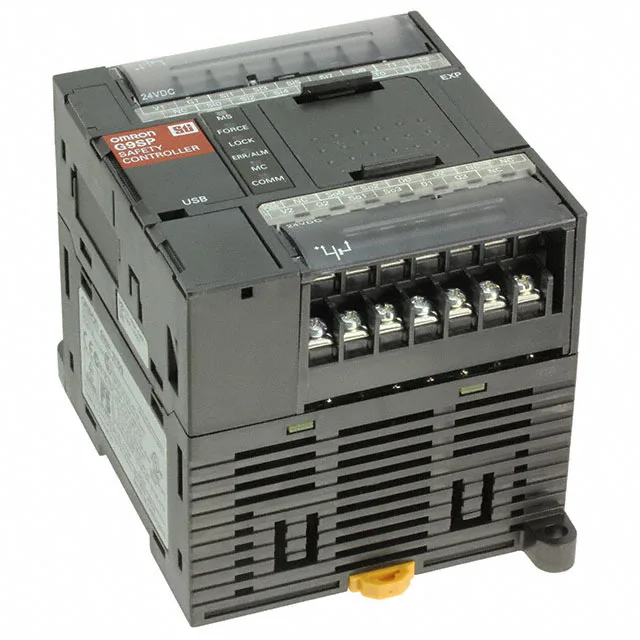

The Omron G9SP-N10S is a general-purpose safety controller from the G9SP series, running on a 24VDC supply. It provides 10 digital inputs and 4 solid-state safety outputs, plus 4 auxiliary solid-state outputs — all terminated via screw terminals.
The 10 digital inputs are the safety-related sensor inputs — e-stop circuits, light curtains, or interlock switches connect here. The solid-state safety outputs (4) are the primary switched paths to contactors or motor starters; the 4 auxiliary solid-state outputs can drive status indicators or feed a PLC input without affecting the safety logic. Operating temperature range is 0°C to 55°C, which covers most control-panel environments but not refrigerated or outdoor cabinets without climate control.
