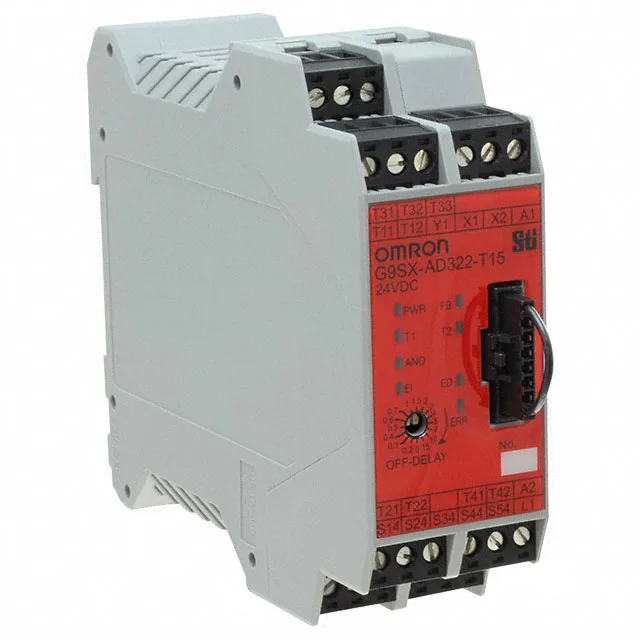

Omron G9SX-AD322-T15-RT DC24

Omron G9SX-AD322-T15-RT DC24 Safety Controller, SIL3 PLe Cat

MPN G9SX-AD322-T15-RT DC24
Active

Omron G9SX series safety controller, G9SX-AD322-T15-RT DC24, 24VDC, 2 digital inputs, 6 solid-state safety outputs + 2 auxiliary, 0~15s delay, DIN-rail mount, screw terminals.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

G9SX-AD322-T15-RT DC24 specifications
ParameterValue
SeriesG9SX
Controller typeGeneral Purpose
Supply voltage24 VDC
MountingDIN Rail
Temp operating max55 °C
Temp operating min-10 °C
Weight0.441 lb (200.03 g)
PackageBulk
Safety categoryCategory 4, PLe, SIL3

Product details

The Omron G9SX-AD322-T15-RT DC24 is a general-purpose safety controller rated Category 4, PLe, SIL3 — the highest integrity tier for machine safety circuits. It runs on a 24VDC supply and provides six solid-state safety outputs plus two auxiliary solid-state outputs, all terminated via screw terminals on a DIN-rail mount. Two digital inputs accept standard safety signals (e.g., e-stops, light curtains), and the onboard delay timer is adjustable from 0 to 15 seconds — useful for staggered shutdown sequences or timed bypass windows. The logical AND I/O feature allows cascading multiple G9SX units without extra wiring, simplifying multi-zone safety architectures.

Approved by CE, CSA, cULus, SUD, TUV, and UL — covers European, North American, and global machine-safety standards.

MPN
G9SX-AD322-T15-RT DC24
