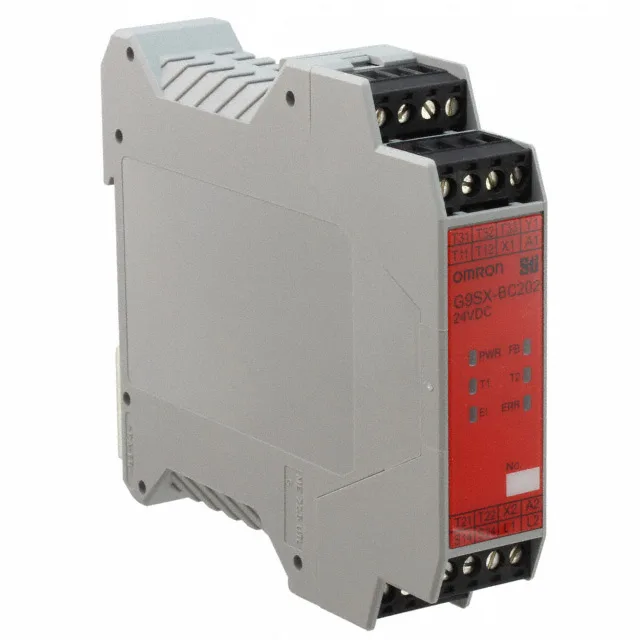

The G9SX-BC202-RT DC24 is an Omron G9SX-series general-purpose safety controller rated for Category 4, PLe, SIL3 applications. It runs on a 24VDC supply and provides two digital inputs and two solid-state safety outputs, plus two auxiliary solid-state outputs.
Category 4, PLe, SIL3 is the top end of the safety integrity scale — this controller is built for the highest-risk machinery where a single fault can't lead to loss of the safety function. The two solid-state safety outputs (OSSD) are the main load-switching pair; the two auxiliary solid-state outputs mirror the safety status for a PLC or indicator. The 24VDC supply is standard for control panels, and the DIN-rail footprint keeps panel layout clean. Screw terminals are field-proven for maintenance access — no special tool needed for swap-outs.
