Omron G9SX-EX401-RC DC24

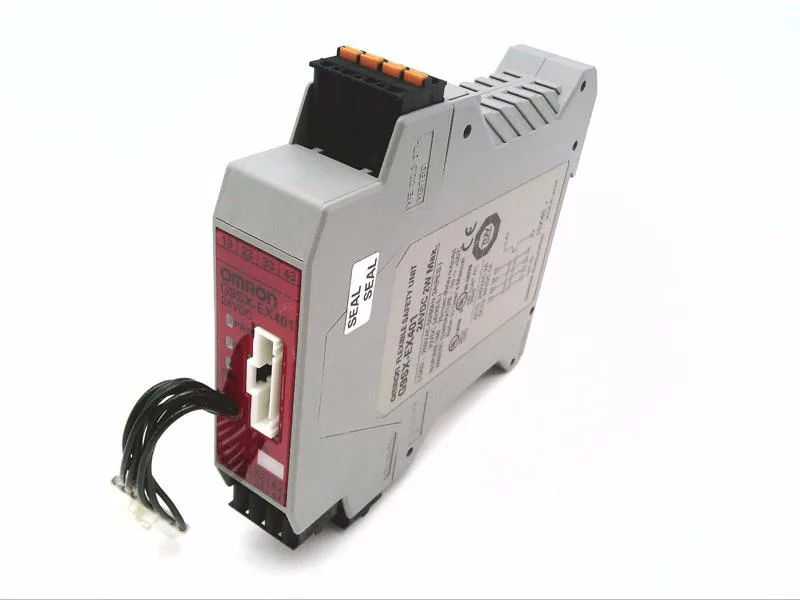

Omron G9SX-EX401-RC DC24 Safety Expansion Module, 24VDC, SIL

MPN G9SX-EX401-RC DC24
Active

Omron G9SX series safety expansion module, G9SX-EX401-RC DC24, 24VDC, 4 solid-state safety outputs, Category 4 / PLe / SIL3, DIN Rail, spring terminal.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

G9SX-EX401-RC DC24 specifications
ParameterValue
SeriesG9SX
Controller typeExpansion Module
Supply voltage24 VDC
MountingDIN Rail
Temp operating max55 °C
Temp operating min-10 °C
Weight0.364 lb (165.11 g)
PackageBulk
Safety categoryCategory 4, PLe, SIL3

Product details

Safety expansion for SIL3 systems

The G9SX-EX401-RC DC24 is a safety expansion module in the G9SX series, rated for Category 4, PLe, SIL3 — the highest integrity tier for machine safety circuits. It adds four solid-state safety outputs and one auxiliary solid-state output to an existing safety controller, expanding I/O without re-spinning the safety logic.

What the safety rating means for fit

Category 4 / PLe / SIL3 means the module is designed for single-fault-tolerant architectures with 100 % diagnostic coverage. On a glass furnace, that covers the safety-rated interlock chain on the burner management system or the melt-zone access gate. The solid-state outputs switch faster than relay contacts and hold up under repeated cycling — no contact wear to track.
