Omron G9SX-GS226-T15-RT DC24

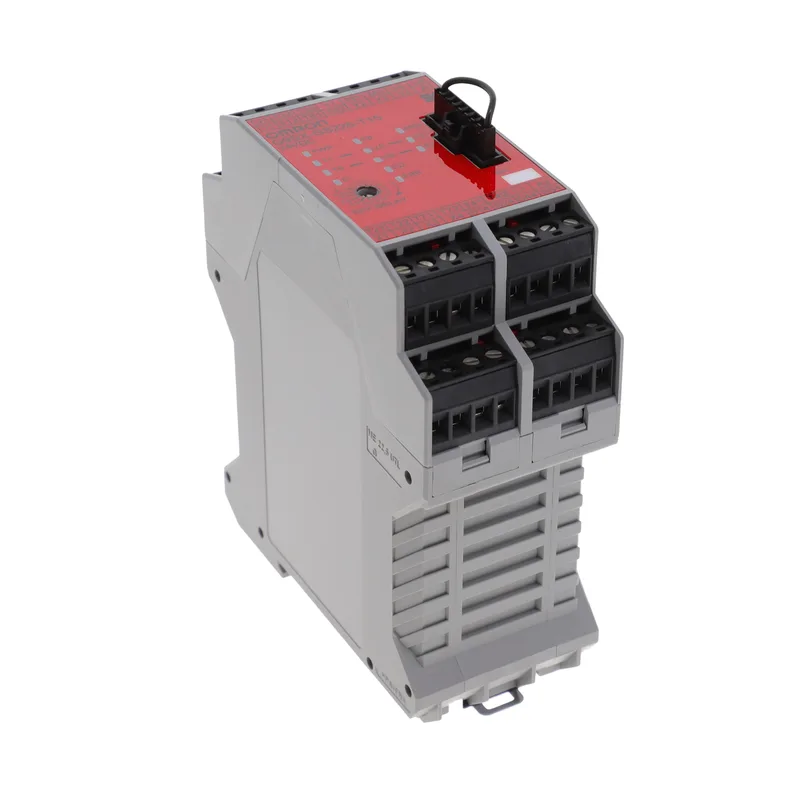

Omron G9SX-GS226-T15-RT DC24 Safety Controller, SIL3, 24VDC

MPN G9SX-GS226-T15-RT DC24
Active

Omron G9SX series, safety controller, G9SX-GS226-T15-RT DC24, 24VDC, Category 4, PLe, SIL3, 4 solid-state safety outputs, 0-15 sec delay, DIN rail mount.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

G9SX-GS226-T15-RT DC24 specifications
ParameterValue
SeriesG9SX
Controller typeGeneral Purpose
Supply voltage24 VDC
MountingDIN Rail
Temp operating max55 °C
Temp operating min-10 °C
Weight0.529 lb (239.95 g)
PackageBulk
Safety categoryCategory 4, PLe, SIL3

Product details

The Omron G9SX-GS226-T15-RT DC24 is a general-purpose safety controller rated to Category 4, PLe, SIL3. It runs on a 24VDC supply and provides four solid-state safety outputs plus six solid-state auxiliary outputs, with two digital inputs. A built-in delay timer adjustable from 0 to 15 seconds and logical AND I/O functionality give it flexibility for muting or timed safety sequences without an external PLC.

The SIL3 / PLe / Category 4 rating means this unit is designed for the highest risk-reduction tier in machinery safety — it can handle single-fault tolerance and is tested for redundant architectures. The four solid-state safety outputs are rated for switching safety loads directly; the six auxiliary outputs mirror status signals for a PLC or indicator panel. The delay timer (0–15 s) is useful for applications like press guards where a timed restart is required after the guard closes. Mounts on standard DIN rail, screw terminals for field wiring.

MPN
G9SX-GS226-T15-RT DC24
