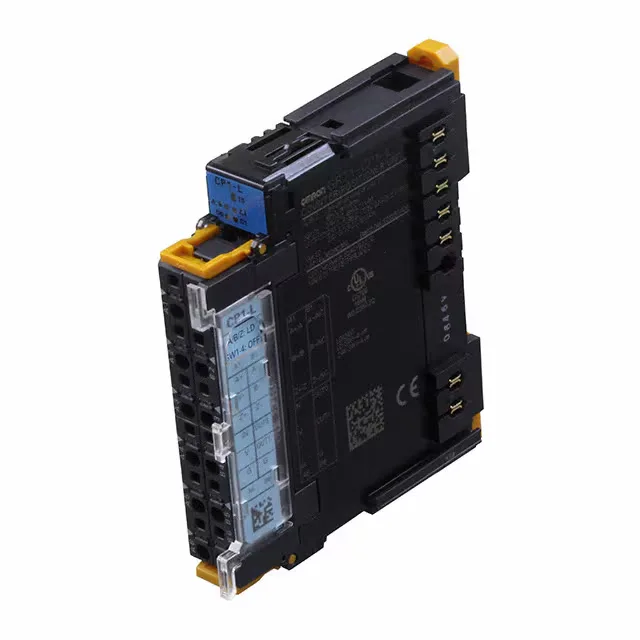

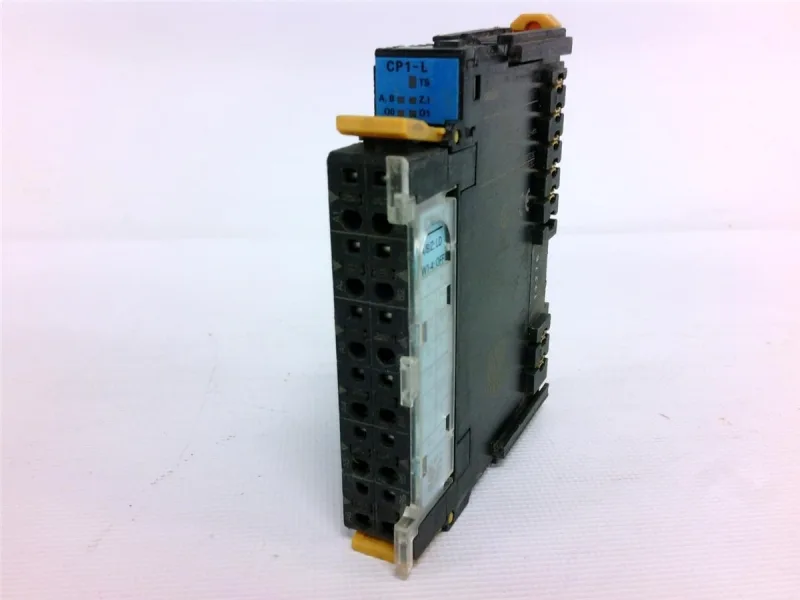

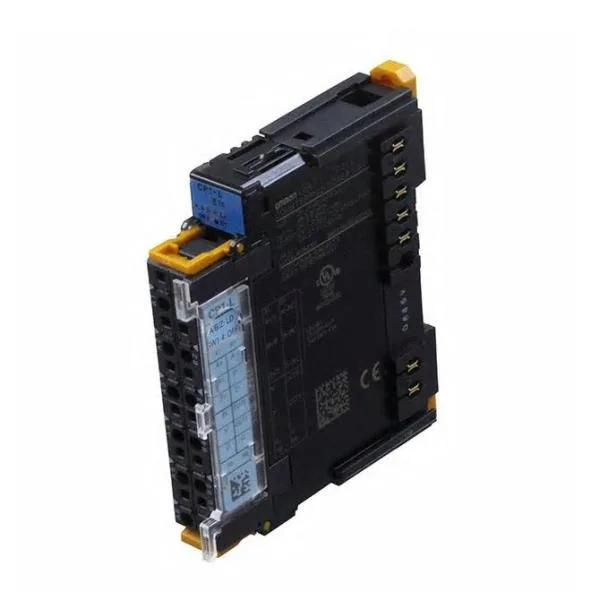

Omron GRT1-CP1-L — PLCs (Programmable Logic Controllers)

Omron GRT1-CP1-L Counter Module, SmartSlice, 1DI/2DO, Discon

MPNGRT1-CP1-L
End of Life

Omron SmartSlice GRT1-CP1-L Counter Module, 1 digital input, 2 solid state outputs, 24VDC, screw terminal, DIN rail.

$147.32Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

GRT1-CP1-L — Identification
ParameterValue
SeriesSmartSlice
GRT1-CP1-L — I/O
ParameterValue
Inputs (count and type)1 - Digital
Outputs (count and type)2 - Solid State
GRT1-CP1-L — Electrical
ParameterValue
Supply voltage24VDC
GRT1-CP1-L — Environmental
ParameterValue
Operating temperature range-10°C ~ 55°C
GRT1-CP1-L — Mechanical
ParameterValue
Mounting typeDIN Rail
Weight0.177 lb (80.29 g)
Termination styleScrew Terminal
GRT1-CP1-L — Approvals
ParameterValue
Approvals / certificationsCE, cULus, Lloyd
GRT1-CP1-L — Other specifications
ParameterValue
TypeCounter Module
IP ratingIP20

Product details

Cycle counter for the molding cell edge

The GRT1-CP1-L is a SmartSlice counter module wearing one digital input and two solid-state outputs on a 24 VDC screw-terminal block. Designed to count press cycles or part-in-place signals from a molding cell, then fire outputs to a downstream reject gate, conveyor segment, or station light. One input from the press stroke, two outputs to score separate actions—scrap diverter and good-part tally, for example. Mounts on DIN rail alongside other SmartSlice I/O in a CJ/CS/NJ rack. Discontinued now, but available from surplus and broker channels.

What is on the nameplate — traceability facts

DIN-rail mount, screw terminals, IP20, -10 to 55 °C. 1 digital input, 2 solid-state outputs, 24VDC. Approvals: CE, cULus, Lloyd.

Frequently asked questions

Will the GRT1-CP1-L fit in a panel designed for the GRT1-CT1-1?

Mechanically yes — same SmartSlice series, same DIN-rail mount, same screw terminals, same supply voltage. The only difference is the output count, which may require a wiring change if both outputs are used.

What approvals does the GRT1-CP1-L carry?

CE, cULus, and Lloyd. No additional compliance documentation is listed.

MPN
GRT1-CP1-L
