Omron GRT1-DA2C — PLC I/O & Expansion Modules

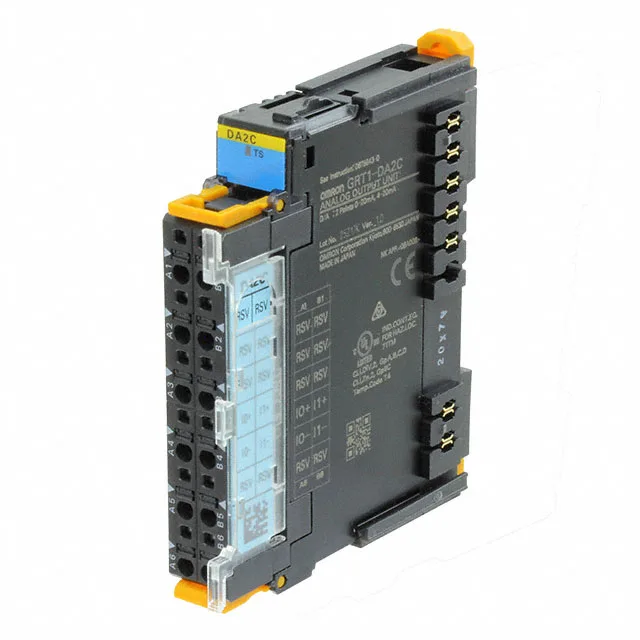

Omron GRT1-DA2C SmartSlice Output Module, 2 Analog

Name: GRT1-DA2C
Brand: Omron
SKU: GRT1-DA2C
Availability: LimitedAvailability
Author: Vision Mateo

MPNGRT1-DA2C

End of Life

Omron SmartSlice analog output module, GRT1-DA2C, 2 analog outputs, 24 VDC, screw terminal, DIN rail.

$689.33 – $706.29Ref. price · indicative, final on quote

Add to RFQ

Omron GRT1-DA2C datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

GRT1-DA2C — Identification
Parameter	Value
Series	SmartSlice
Type	Output Module
Compatible / related products	CJ, CS, NJ Series

GRT1-DA2C — I/O
Parameter	Value
Outputs (count and type)	2 - Analog

GRT1-DA2C — Environmental
Parameter	Value
Operating temperature range	-10°C ~ 55°C

GRT1-DA2C — Mechanical
Parameter	Value
Termination style	Screw Terminal
Mounting type	DIN Rail

GRT1-DA2C — Approvals
Parameter	Value
Approvals / certifications	CE, cULus, Lloyd

GRT1-DA2C — Other specifications
Parameter	Value
Weight	0.181 lb (82.1 g)
Supply voltage	24VDC
IP rating	IP20

Product details

The GRT1-DA2C: Two analog outputs from a 24VDC bus, DIN rail mount, screw terminals. IP20 – panel interior only. CE, cULus, and Lloyd approved.

How It Sits Beside the Solid-State Siblings

The GRT1-OD4G-3 and GRT1-OD8-1 are digital solid-state output modules in the same SmartSlice frame. The DA2C is the analog member of the family; if a panel was wired for discrete switching (on/off), this part will not drive those loads – it outputs a variable analog signal. Footprint, bus voltage, and terminal pitch are identical, so a swap in software-defined I/O slots is mechanically possible but functionally wrong unless the application truly needs analog.

Frequently asked questions

Can the GRT1-DA2C replace a GRT1-OD4G-3 on the same panel?

Mechanically it fits the same DIN rail and uses the same 24VDC supply, but the output type differs: the DA2C provides analog outputs, whereas the OD4G-3 provides four solid-state digital outputs. It is not a functional drop-in if discrete switching is needed.
