Omron GRT1-ID8 — Digital Input Modules

Omron GRT1-ID8 SmartSlice 8-Point Digital Input Module, 24VD

MPNGRT1-ID8
End of Life

Omron SmartSlice, Type Input Module, GRT1-ID8, 8 digital inputs, 24VDC, screw terminal, DIN rail, IP20, CE/cULus/Lloyd.

$58.42Ref. price · indicative, final on quote
Omron GRT1-ID8 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

GRT1-ID8 — Identification
ParameterValue
SeriesSmartSlice
For use with / related productsCJ, CS, NJ Series
GRT1-ID8 — Inputs
ParameterValue
Digital inputs (count and type)8 - Digital
GRT1-ID8 — Electrical
ParameterValue
Supply voltage24VDC
GRT1-ID8 — Environmental
ParameterValue
Operating temperature range-10°C~55°C
GRT1-ID8 — Mechanical
ParameterValue
Termination styleScrew Terminal
Mounting typeDIN Rail
GRT1-ID8 — Approvals
ParameterValue
Agency approvalsCE, cULus, Lloyd
GRT1-ID8 — Other specifications
ParameterValue
TypeInput Module
Weight0.177 lb (80.29 g)
IP ratingIP20

Product details

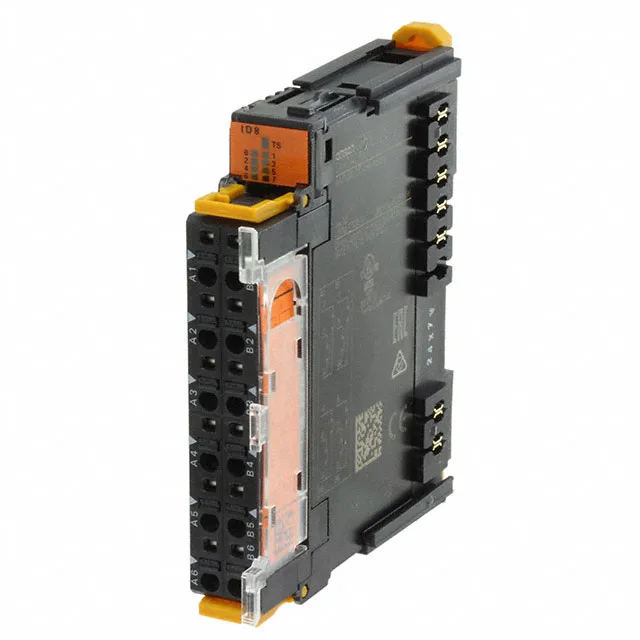

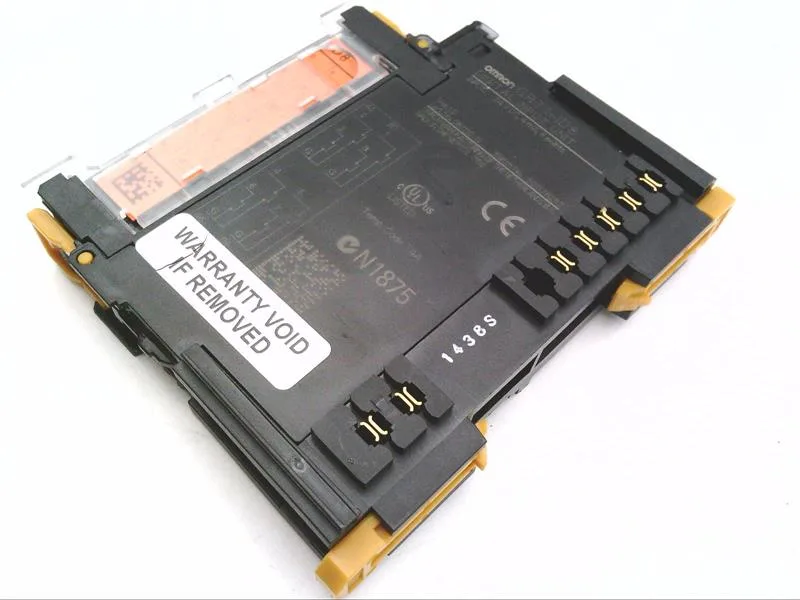

SmartSlice Digital Input Slice

The GRT1-ID8 is an Omron SmartSlice 8-point digital input module. It accepts 24VDC signals from field devices and communicates with CJ, CS, and NJ series PLCs via the SmartSlice bus coupler (not included). The module carries CE, cULus, and Lloyd's approvals, so it is cleared for marine and general industrial installations. It operates from -10°C to 55°C with an IP20 enclosure.

Mounting and Connection

Mounts on DIN rail. Screw terminals handle field wiring; power drawn from SmartSlice bus coupler at 24VDC.

Frequently asked questions

What type of module is the GRT1-ID8?

It is an input module with 8 digital channels, 24VDC supply.

What approvals does the GRT1-ID8 carry?

It carries CE, cULus, and Lloyd's approvals, enabling use in marine and industrial environments.
