GRT1-ID8-1 Overview

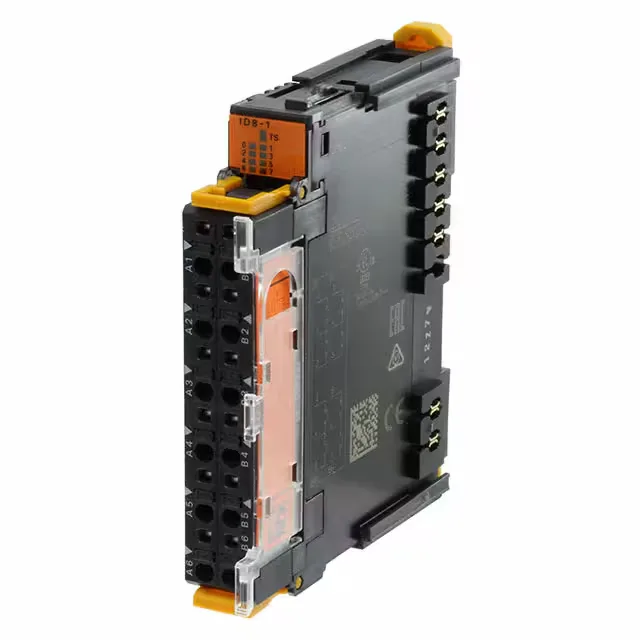

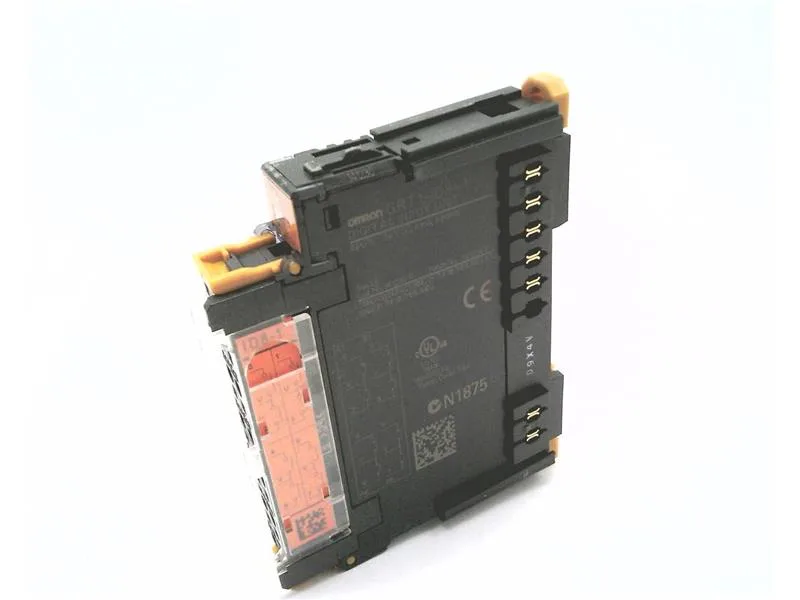

The OMRON GRT1-ID8-1 is an 8-point digital input slice in the SmartSlice I/O series, designed for use with CJ, CS, and NJ series PLCs. It provides eight 24 VDC inputs through screw terminals, mounted on standard DIN rail. Rated IP20 with an operating range of -10°C to 55°C. Approvals include CE, cULus, and Lloyd's. The module draws its supply voltage from the SmartSlice bus or external 24 VDC.
Mounting and Integration
Snap onto DIN rail. Wire field inputs to the screw terminals. The slice connects to the SmartSlice bus, addressed automatically by the CJ/CS/NJ master.
