Omron GRT1-OD4-1

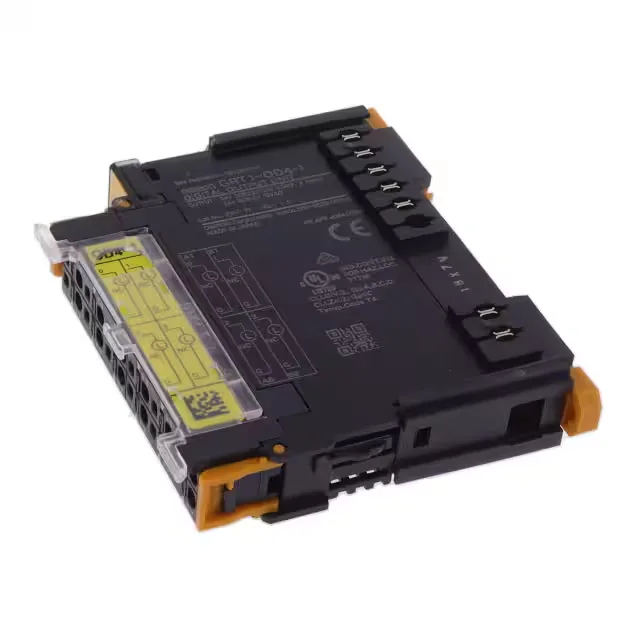

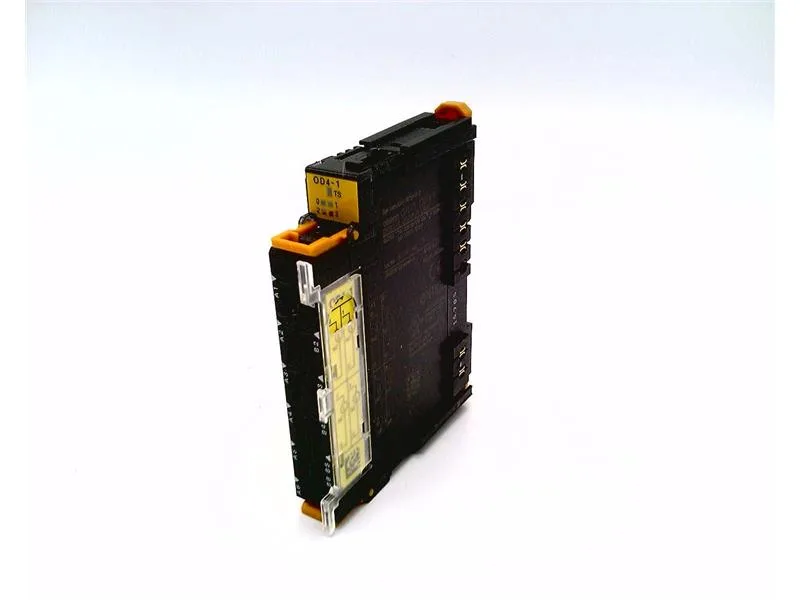

Omron GRT1-OD4-1 SmartSlice Output Module, Obsolete

MPN GRT1-OD4-1
End of Life

Omron SmartSlice Output Module, 4 Solid State Outputs, 24VDC, DIN Rail, Screw Terminal, IP20.

$53.34 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

GRT1-OD4-1 specifications
ParameterValue
SeriesSmartSlice
Product typeOutput Module
Supply voltage24 VDC
IP ratingIP20
MountingDIN Rail
Temp operating max55 °C
Temp operating min-10 °C
Weight0.168 lb (76.2 g)
PackageBulk

Product details

The Omron GRT1-OD4-1 is a SmartSlice output module providing 4 solid-state outputs at 24VDC, with DIN Rail mounting and screw terminals housed in an IP20 enclosure.

Integration Note

The module fits a standard DIN rail; the screw terminals accept field wiring for the 4 solid-state outputs and the 24VDC supply. Rated for -10°C to 55°C, it suits cabinet environments without special cooling.

MPN
GRT1-OD4-1
