Omron GRT1-OD8-1 — Digital Output Modules

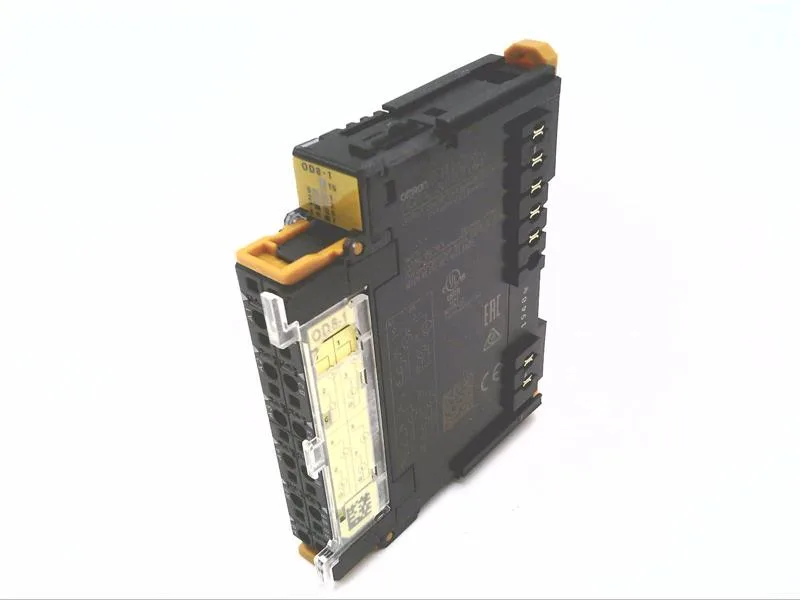

Omron GRT1-OD8-1 SmartSlice Output Module, 8 Solid State

MPNGRT1-OD8-1
End of Life

Omron SmartSlice GRT1-OD8-1 output module, 8 solid state outputs, 24VDC, DIN rail mount, screw terminal, IP20.

$60.96Ref. price · indicative, final on quote
Omron GRT1-OD8-1 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

GRT1-OD8-1 — Identification
ParameterValue
SeriesSmartSlice
TypeOutput Module
Compatible withCJ, CS, NJ Series
GRT1-OD8-1 — Outputs
ParameterValue
Outputs and output technology8 - Solid State
GRT1-OD8-1 — Environmental
ParameterValue
Operating temperature range-10°C ~ 55°C
GRT1-OD8-1 — Mechanical & Connection
ParameterValue
Mounting typeDIN Rail
Termination styleScrew Terminal
GRT1-OD8-1 — Approvals
ParameterValue
Approvals / certificationsCE, cULus, Lloyd
GRT1-OD8-1 — Other specifications
ParameterValue
Weight0.177 lb (80.29 g)
Supply voltage24VDC
IP ratingIP20

Product details

The Omron GRT1-OD8-1 is a SmartSlice output module packing 8 solid state outputs on a 24 VDC rail, designed for CJ, CS, and NJ series PLCs. Screw terminals and DIN rail mount make it a straightforward field swap — no special tooling needed.

Field-fit notes

Rated for -10°C to 55°C ambient with IP20 enclosure — fine inside a ventilated panel, but keep it away from washdown zones. The 24 VDC supply rail is shared with the SmartSlice bus, so watch the total current draw if you're stacking multiple slices. Mounts on standard DIN rail, wiring with a screwdriver you've already got in the van.

Frequently asked questions

What are the key specifications of the GRT1-OD8-1?

It is an output module with 8 solid state outputs, 24 VDC supply, DIN rail mount, screw terminal, IP20, and operates from -10°C to 55°C. It works with Omron CJ, CS, and NJ series PLCs.

MPN
GRT1-OD8-1
