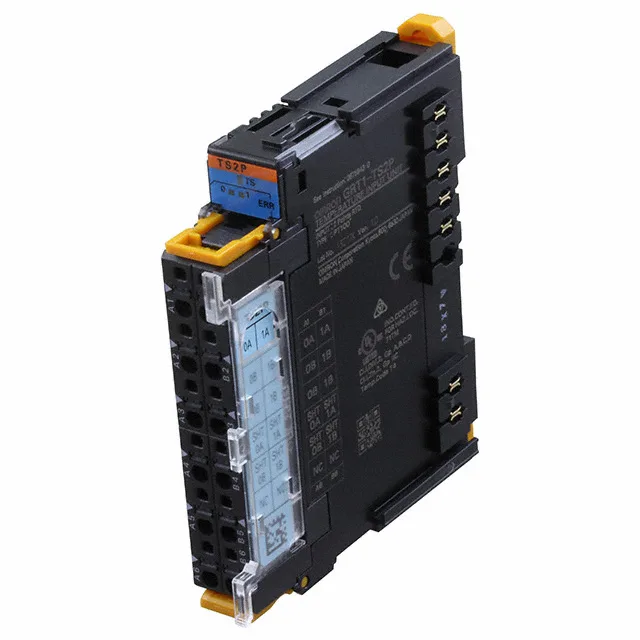

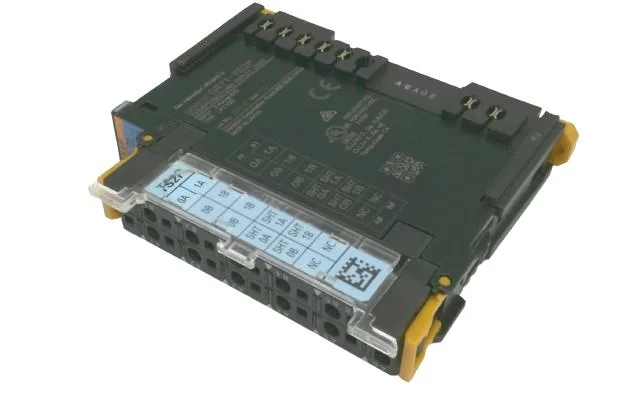

Omron SmartSlice GRT1-TS2P input module, 2 analog channels, 24 VDC supply, screw terminal, DIN rail mount, IP20.
| Parameter | Value |
|---|---|
| Series | SmartSlice |
| Parameter | Value |
|---|---|
| Inputs (count and type) | 2 - Analog |
| Parameter | Value |
|---|---|
| Supply voltage | 24VDC |
| Parameter | Value |
|---|---|
| Operating temperature range | -10°C ~ 55°C |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Weight | 0.19 lb (86.18 g) |
| Termination style | Screw Terminal |
| Parameter | Value |
|---|---|
| Approvals / certifications | CE, cULus, Lloyd |
| Parameter | Value |
|---|---|
| Type | Input Module |
| IP rating | IP20 |
GRT1-TS2P mounts on DIN rail, uses screw terminals, and operates on 24 VDC.
This part is sourced as a new unit against an RFQ. While we do not flag it as end-of-life, it occupies a mature slot in the SmartSlice line – order against a BOM line, not for future design-in without consulting your Omron representative.
The GRT1-TS2PK is functionally identical – same analog inputs, same supply, same screw terminals.
Yes, it is listed for use with CJ, CS, and NJ series PLCs.
It carries CE, cULus, and Lloyd's approvals.
Alternative models and sibling configurations in the same Omron series. For obsolete or discontinued parts, these models can serve as compatible replacements or functional alternatives for plant maintenance.
