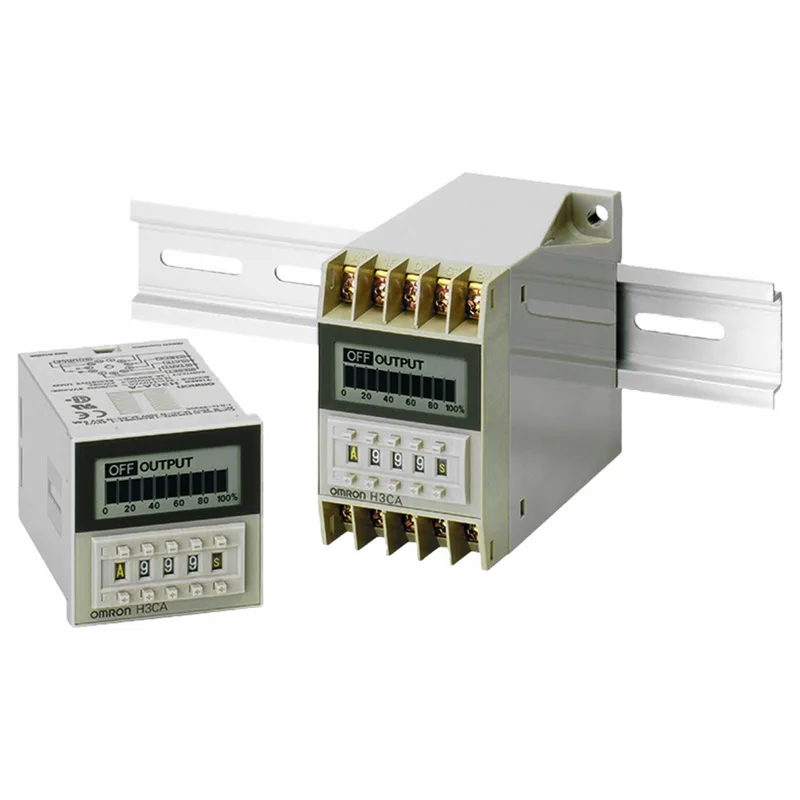

Omron H3CA-8H AC100/110/120
MPNH3CA-8H AC100/110/120
Active
RELAY TIME DELAY 9990HRS 3A 250V
$197.10 – $396.57Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Electrical connection type | Pin |
| Input voltage | 100/110/120V AC |
| Contact form | SPDT |
| IP rating | IP40 |
| Adjustment interface | Digital |
| Relay mounting style | Surface |
| Maximum operating temperature | 55 °C |
| Minimum operating temperature | -10 °C |
| Body depth | 2.96 in |
| Body width | 1.88 in |
| Body height | 1.88 in |
| Electrical operating durability | 100,000 |
All specifications
| Parameter | Value |
|---|---|
| Mechanical operating durability | 1,000,000 |
| Standards | (EMI) EN61812-1; (EMS) EN61812-1; Conforms to EN61812-1; Emission AC mains: EN55011 Group 1 Class A; Emission Enclosure: EN55011 Group 1 Class A; Immunity Burst: IEC61000-4-4; Immunity Conducted Disturbance: IEC61000-4-6; Immunity ESD: IEC61000-4-2; Immunity RF-interference: IEC61000-4-3; Immunity Surge: IEC61000-4-5; Immunity Voltage Dip/Interruption: IEC61000-4-11; UL508, CSA C22.2 No. 14, LR, NK |
| Brand | OMRON |
| Reset method | Self Reset |
| Delay function | Power On Delay |
| Pin count | 8 |
| Relay operation | Solid State |
| Contact rating | 3 A @ 250V (Resistive Load) |
| Maximum time setting | 9,990 hr |
| Minimum time setting | 0.1 sec |
| Operating time accuracy | ±0.3% ±0.05 s |
| Number of delay functions | 7 |
MPN
H3CA-8H AC100/110/120
