Omron H3CA-A-306

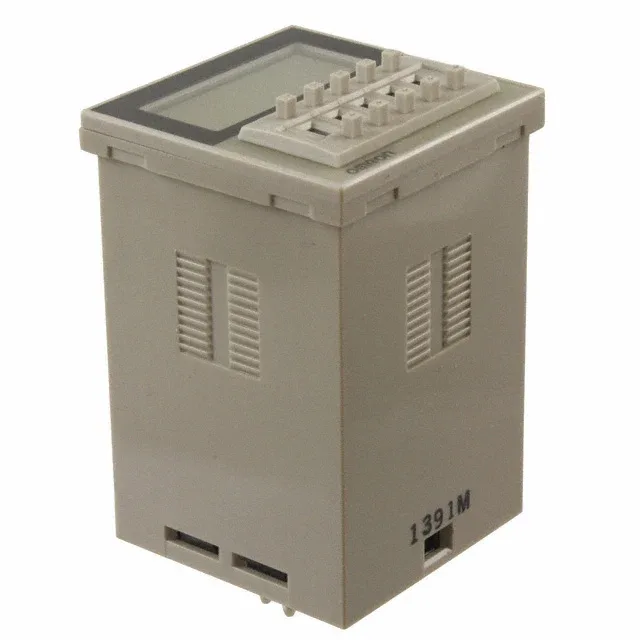

Omron H3CA-A-306 Time Delay Relay, 0.1s-9990h, SPDT, 3A

MPN H3CA-A-306
Obsolete

Omron H3CA-A-306 programmable multi-function time delay relay, SPDT (1 Form C), 3A @ 250VAC, 24-240VAC / 12-240VDC supply, 0.1 Sec ~ 9990 Hrs delay range, octal 11-pin plug-in base.

$216.26 – $223.07 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

H3CA-A-306 specifications
ParameterValue
SeriesH3CA
TypeMechanical Relay
Supply voltage24 to 240VAC, 12 to 240VDC
MountingSocket
PackageBulk
Delay time0.1 Sec to 9990 Hrs
Timing initiate methodInput Voltage
Timing adjustment methodThumbwheel Switches

Product details

Obsolete — sourcing through independent channels

The H3CA-A-306: For a BOM line that needs this exact order code, the supply path is through independent surplus and broker channels. Availability and pricing are confirmed at RFQ — quantities are lot-specific and not held as standing stock.

Supply voltage is 24–240 VAC or 12–240 VDC — covers most common control voltages in industrial panels without needing a separate power supply module. The wide-range input means it works on both 24 VDC PLC outputs and 120/240 VAC control transformers. Delay time spans 0.1 seconds to 9990 hours, set via thumbwheel switches on the front face. The multi-function programmable logic lets you select on-delay, off-delay, interval, or one-shot timing modes — one relay covers multiple timing jobs in a panel. Contact rating is 3 A at 250 VAC — sufficient for pilot-duty loads like contactor coils, solenoid valves, or indicator lamps. The SPDT (Form C) output gives both a normally-open and normally-closed set of contacts, so you can wire either the energized or de-energized state as the timed action. Mounts via an octal 11-pin plug-in base — the same footprint used across the H3CA family and many competitive timers. If your panel already has an 11-pin octal socket wired, this relay drops in without rewiring the base.

MPN
H3CA-A-306
