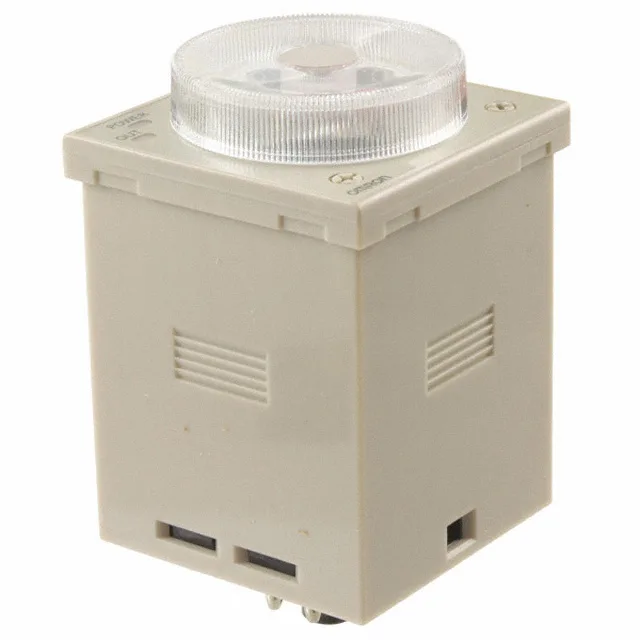

The Omron H3CR-A8-302 DC24 is a programmable multi-function time delay relay from the H3CR-A series. It operates on a 24VDC supply and switches loads up to 5A at 250VAC through its DPDT (2 Form C) output contacts. The delay range spans 0.05 seconds to 300 hours, set via the front-panel hand dial. Termination is an 8-pin octal plug-in base, making it a drop-in swap for existing octal-socket timer installations.
Omron H3CR-A8-302 DC24 Time Delay Relay, 24VDC, 5A
MPNH3CR-A8-302 DC24
Active
Omron H3CR-A series, programmable time delay relay, DPDT (2 Form C), 24VDC, 5A @ 250VAC, 0.05 Sec ~ 300 Hrs delay range, octal plug-in, bulk package.
$142.88 – $169.34Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | H3CR-A |
| Parameter | Value |
|---|---|
| Function | Programmable (Multi-Function) |
| Parameter | Value |
|---|---|
| Delay time range | 0.05 Sec ~ 300 Hrs |
| Timing adjustment method | Hand Dial |
| Parameter | Value |
|---|---|
| Supply voltage | 24VDC |
| Parameter | Value |
|---|---|
| Contact rating @ voltage | 5A @ 250VAC |
| Contact circuit (Form) | DPDT (2 Form C) |
| Relay type | Mechanical Relay |
| Parameter | Value |
|---|---|
| Mounting type | Socketable |
| Termination style | Plug In, 8 Pin (Octal) |
Product details
Frequently asked questions
What is the contact configuration and rating?
The relay has DPDT (2 Form C) contacts rated at 5A at 250VAC. This is sufficient for pilot duty, signal switching, or small solenoid loads; for motor or heater loads above this rating, interpose a contactor.
MPN
H3CR-A8-302 DC24
