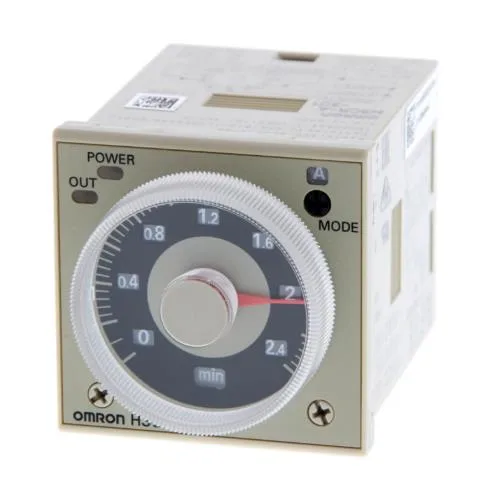

Omron H3CR-A8 AC100-240/DC100-125
MPNH3CR-A8 AC100-240/DC100-125
Active
RELAY TIME DELAY 300HRS 5A 250V
$111.94 – $196.66Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Electrical connection type | Pin |
| Input voltage | 100 to 240V AC; 100 to 125V DC |
| Current rating | 5 A |
| Contact form | DPDT |
| IP rating | IP40 |
| Relay mounting style | Surface |
| Maximum operating temperature | 131 °F |
| Minimum operating temperature | 14 °F |
| Body depth | 2.06 in |
| Body width | 1.89 in |
| Body height | 1.89 in |
| Electrical operating durability | 100,000 |
All specifications
| Parameter | Value |
|---|---|
| Mechanical operating durability | 20,000,000 |
| Standards | CCC; CE Certified; CSA Certified; EN 61812-1; LR; NK; UL Listed; UR |
| Brand | OMRON |
| Reset method | Forced Reset |
| Delay function | Flicker Off Start; Flicker On Start; Interval; On Delay; One Shot; Signal Off Delay; Signal On/Off Delay |
| Pin count | 8 |
| Relay operation | Solid State |
| Adjustment method | Analog Dial |
| Contact rating | 5 A @ 250V |
| Maximum time setting | 300 hr |
| Minimum time setting | 0.05 sec |
| Operating time accuracy | ±0.2% FS max |
| Environmental protection | Enclosed |
| Number of delay functions | 8 |
MPN
H3CR-A8 AC100-240/DC100-125
