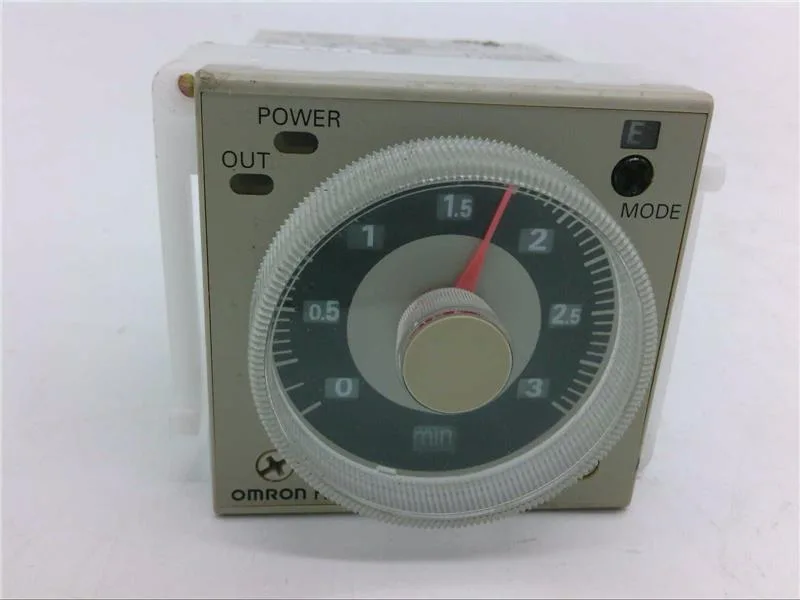

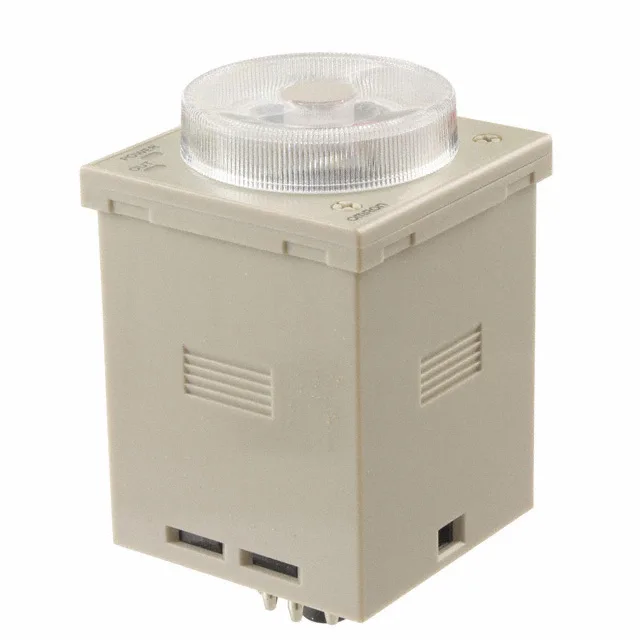

Omron H3CR-AS AC24-48/DC12-48
MPNH3CR-AS AC24-48/DC12-48
Active
RELAY TIME DELAY 300HRS SOCKET
$55.88 – $128.46Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Output signal | DPDT (time-limit) |
| Connection type | 11-pin socket |
| Supply voltage | 24-48 VAC/12-48 VDC |
| Power ON delay | No |
| Power OFF delay | No |
| ON (OFF adjustable duty cycle) | No |
| Dimensions h x w x d | 45 x 45x 82 |
| Inputs | No-voltage input or Voltage input |
| Display | LED indicators |
| Stopwatch | No |
| Cumulative | No |
| Star-Delta | No |
All specifications
| Parameter | Value |
|---|---|
| Twin timer | No |
| Time ranges | 0.05 s to 300 h |
| Interval mode | Yes |
| ON-delay mode | Yes |
| Setting method | Analog dial |
| Resetting method | Power Reset |
| One-shot output mode | Yes |
| Signal OFF delay mode | Yes |
| Number of operating modes | 8 |
| Repeat cycle ON start mode | Yes |
| Repeat cycle OFF start mode | Yes |
| Signal ON (OFF delay ON start mode) | Yes |
| On-Delay with instantaneous output | No |
| Signal ON (OFF delay OFF start mode) | Yes |
MPN
H3CR-AS AC24-48/DC12-48
