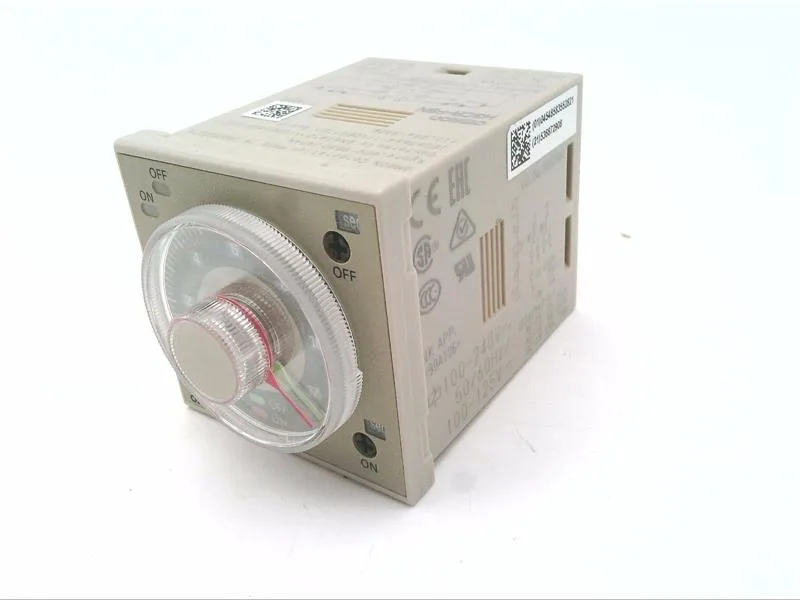

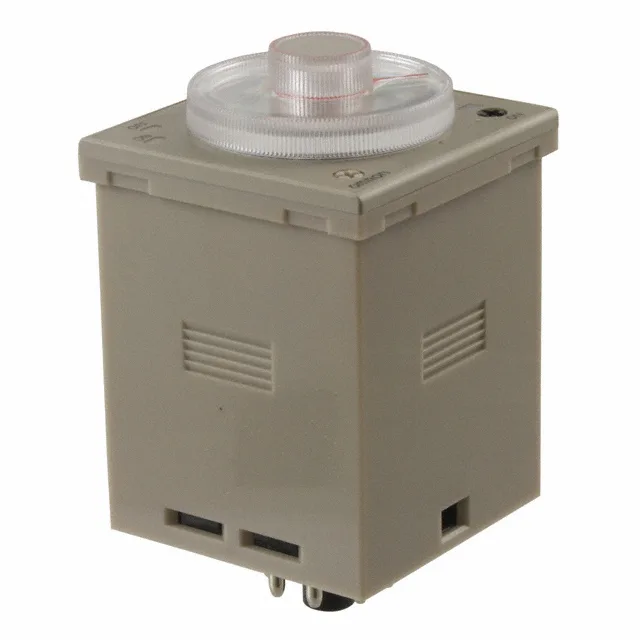

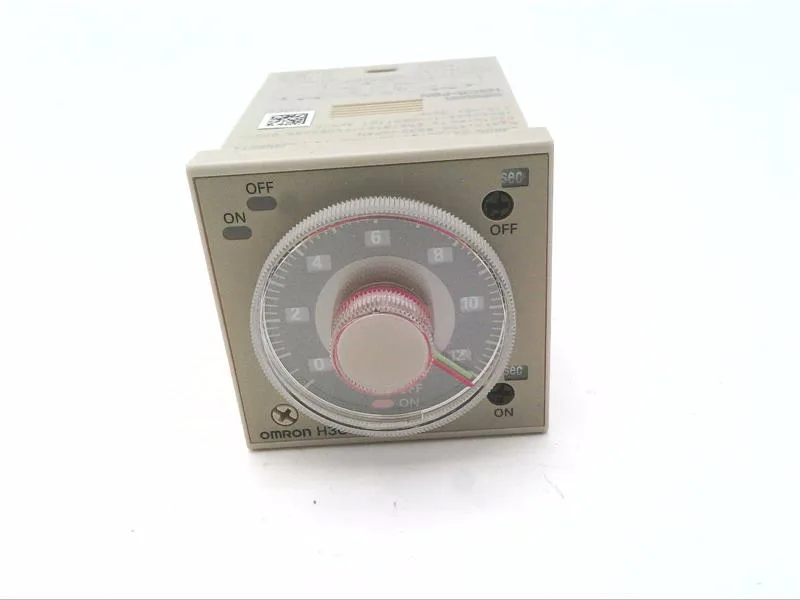

Omron H3CR-F8N AC100-240/DC100-125
MPNH3CR-F8N AC100-240/DC100-125
Active
RELAY TIME DELAY 30HRS 5A 250V
$78.74 – $171.51Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Electrical connection type | Pin |
| Input voltage | 100 to 240V AC; 100 to 125V DC |
| Contact form | DPDT |
| IP rating | IP40 |
| Adjustment interface | Analog |
| Relay mounting style | Surface |
| Maximum operating temperature | 55 °C |
| Minimum operating temperature | -10 °C |
| Body depth | 2.77 in |
| Body width | 1.88 in |
| Body height | 1.88 in |
| Electrical operating durability | 100,000 |
All specifications
| Parameter | Value |
|---|---|
| Mechanical operating durability | 1,000,000 |
| Standards | Conforms to EN 61812-1 and IEC 60664-1 (VDE 0110) 4kV/2; Output Category According to EN 60947-5-1 for Timers with Contact Outputs; Output Category According to EN60947-5-2 for Timers with Transistor Outputs; UL508, CSA C22.2 No. 14, NK, Lloyd's, CCC: GB/T 14048.5 |
| Brand | OMRON |
| Reset method | Time-Limit Reset/Self Reset |
| Delay function | Flicker ON start |
| Pin count | 8 |
| Relay operation | Solid State |
| Contact rating | 5 A @ 250V (Resistive Load) |
| Maximum time setting | 300 hr |
| Minimum time setting | 0.05 sec |
| Operating time accuracy | ±0.2% ±10 ms in a range of 1.2 s and 3 s; ±0.2% FS max |
| Number of delay functions | 18 |
MPN
H3CR-F8N AC100-240/DC100-125
