Omron H3CR-H8L DC100-125 M — Electronic Timers & Counters

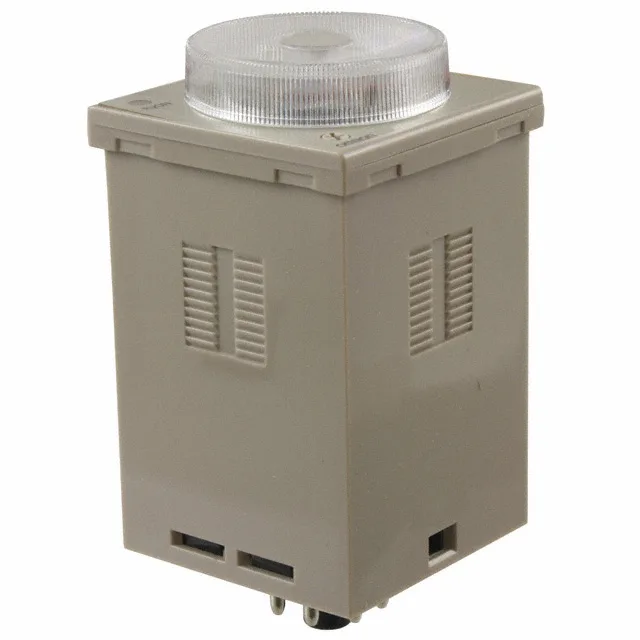

Omron H3CR-H8L DC100-125 M Time Delay Relay, Off-Delay, 12 M

MPNH3CR-H8L DC100-125 M
Active

Omron H3CR-H series, off-delay timer relay, DPDT 5A @ 250VAC, 100-125 VDC coil, 0.05-12 min range, socketable 8-pin octal.

$139.54Ref. price · indicative, final on quote
Omron H3CR-H8L DC100-125 M datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

H3CR-H8L DC100-125 M — Identification
ParameterValue
SeriesH3CR-H
H3CR-H8L DC100-125 M — Function & Modes
ParameterValue
FunctionOff-Delay
H3CR-H8L DC100-125 M — Timing & Counting
ParameterValue
Delay time range0.05 Min ~ 12 Min
Timing adjustment methodHand Dial
Timing initiate methodInput Voltage
H3CR-H8L DC100-125 M — Electrical
ParameterValue
Supply voltage100 ~ 125VDC
H3CR-H8L DC100-125 M — I/O & Contacts
ParameterValue
Contact rating @ voltage5A @ 250VAC
Contact circuit (Form)DPDT (2 Form C)
Relay typeMechanical Relay
H3CR-H8L DC100-125 M — Mechanical
ParameterValue
Mounting typeSocketable
Termination stylePlug In, 8 Pin (Octal)

Product details

Off-Delay Timer for DC-Only Control Circuits

The Omron H3CR-H8L DC100-125 M is an off-delay timer relay from the H3CR-H series, built for DC control circuits running 100 to 125 VDC. It switches a DPDT (2 Form C) contact set rated 5 A at 250 VAC, so it can handle small motor starters, contactor coils, or signal loads on a conveyor or crusher lube system without an interposing relay. The delay range is 0.05 minutes to 12 minutes, set by a hand dial on the front face — no programming tool needed. Timing starts when input voltage is applied; after the set delay the output contacts transfer. That makes it a straight fit for star-delta transition, pump-off delay, or a controlled stop sequence on a mill discharge belt.

Mounting and Termination

Socketable with an 8-pin octal base — mates to a standard Omron PF083A or equivalent socket. The plug-in termination means a panel-builder can pre-wire the socket and snap the timer in after testing; no screw-terminal access needed on the relay body itself.

Frequently asked questions

How do I get current pricing and availability for H3CR-H8L DC100-125 M?

Submit an RFQ through this listing. The part is sourced to order through independent distribution; availability and current pricing are confirmed at quote time.

What is the closest pin-compatible alternative to H3CR-H8L DC100-125 M in this component family?

The H3CR-H series includes multiple timing-function variants (on-delay, off-delay, one-shot) sharing the same 8-pin octal base and DPDT contact rating. For a direct off-delay replacement at the same 100-125 VDC coil voltage, the H3CR-H8L is the correct order code — no pin-compatible alternative with identical function exists in the same series.

What compliance documentation does this brand provide for H3CR-H8L DC100-125 M?

Omron typically provides RoHS and REACH compliance declarations for H3CR-H series timers. UL and CSA listing applies to the socketed relay assembly when used with an approved Omron socket. Specific certificate copies are available on request with an RFQ.

MPN
H3CR-H8L DC100-125 M
