Omron H3CR-H8L DC48 M — Electronic Timers & Counters

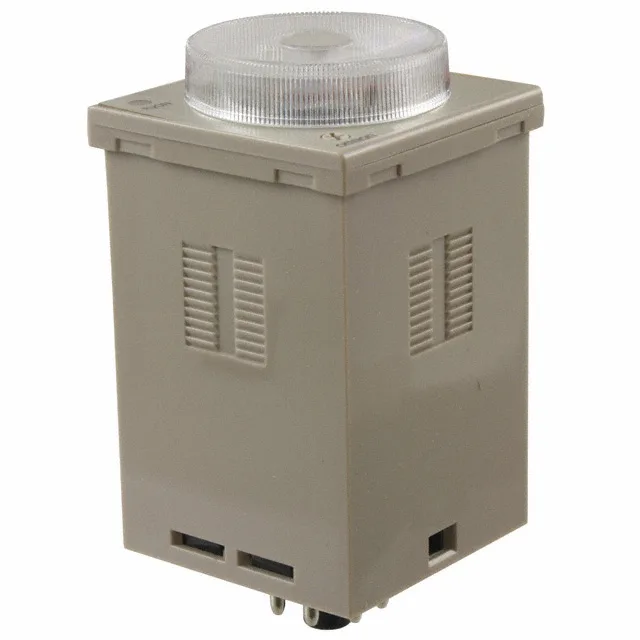

Omron H3CR-H8L DC48 M Off-Delay Timer Relay, 48VDC, DPDT, 5A

MPNH3CR-H8L DC48 M

Active

Omron H3CR-H series, Off-Delay timer relay, DPDT (2 Form C), 48VDC, 0.05 Min ~ 12 Min delay, 5A @ 250VAC, Octal plug-in.

$146.03Ref. price · indicative, final on quote

Add to RFQ

Omron H3CR-H8L DC48 M datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

H3CR-H8L DC48 M — Identification
Parameter	Value
Series	H3CR-H

H3CR-H8L DC48 M — Function & Modes
Parameter	Value
Function	Off-Delay

H3CR-H8L DC48 M — Timing & Counting
Parameter	Value
Delay time range	0.05 Min ~ 12 Min
Timing adjustment method	Hand Dial
Timing initiate method	Input Voltage

H3CR-H8L DC48 M — Electrical
Parameter	Value
Supply voltage	48VDC

H3CR-H8L DC48 M — I/O & Contacts
Parameter	Value
Contact rating @ voltage	5A @ 250VAC
Contact circuit (Form)	DPDT (2 Form C)
Relay type	Mechanical Relay

H3CR-H8L DC48 M — Mechanical
Parameter	Value
Mounting type	Socketable
Termination style	Plug In, 8 Pin (Octal)

Product details

The Omron H3CR-H8L DC48 M is an off-delay timer relay from the H3CR-H series. The 48 VDC coil is socketable via an 8-pin octal base. The DPDT (2 Form C) contacts are rated 5 A at 250 VAC.

Setting the delay and what it means on a line

Delay is adjustable from 0.05 minutes up to 12 minutes via a hand dial. The off-delay function is common in conveyor sequencing. The 48 VDC supply is the coil voltage.

Frequently asked questions

What is the contact rating and circuit configuration?

The relay has DPDT (2 Form C) contacts rated 5 A at 250 VAC. The 8-pin octal plug-in termination makes it a direct swap for standard octal-base timers.
