Omron H3CR-HRL DC100-125 M

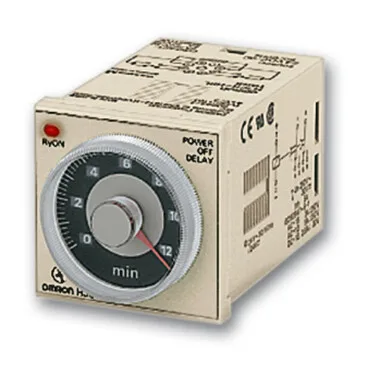

Omron H3CR-HRL DC100-125 M Off-Delay Timer, 0.05-12 Min, DPD

MPN H3CR-HRL DC100-125 M
Active

Omron H3CR-H series, off-delay timer relay, DPDT (2 Form C), 0.05 Min ~ 12 Min range, 100 ~ 125 VDC supply, 5A @ 250VAC, octal plug-in, socketable.

$150.36 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

H3CR-HRL DC100-125 M specifications
ParameterValue
SeriesH3CR-H
TypeMechanical Relay
Supply voltage100 to 125VDC
MountingSocket
PackageBulk
Delay time0.05 Min to 12 Min
Timing initiate methodInput Voltage
Timing adjustment methodHand Dial

Product details

Off-delay timer, DC coil, octal base

The Omron H3CR-HRL DC100-125 M is an off-delay timer relay from the H3CR-H series, meaning the timing cycle starts when the input voltage is removed — the load stays energized for the set delay after the control signal drops out. This is the function you want for sequenced shutdowns, post-lubrication run-down, or delayed venting after a stop command. Supply is 100–125 VDC, so it drops into a DC control bus at nominal 110 V or 125 V without an external dropping resistor. The DPDT (2 Form C) contacts are rated 5 A at 250 VAC — enough for pilot-duty solenoid valves, contactor coils, or indicator loads. Delay is adjustable from 0.05 minutes (3 seconds) to 12 minutes via the front-panel hand dial, which lets you set the timing without powering the unit. Termination is an 11-pin octal plug — mates with standard octal sockets (e.g. Omron PYF-11 or equivalent) for quick replacement without rewiring.

MPN
H3CR-HRL DC100-125 M
