What the H3CRAAC2448DC1248OMI actually does

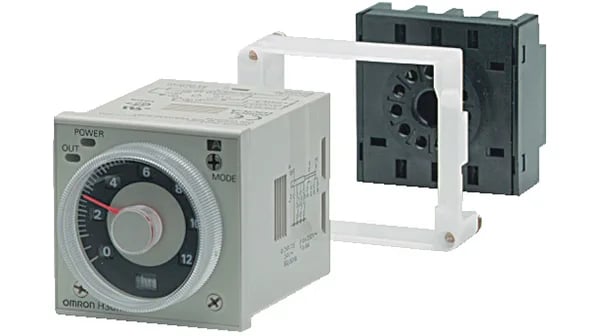

The Omron H3CRAAC2448DC1248OMI is a multifunction electronic timer in the Electronic Timers & Counters class, built for DIN-rail panel mounting through its plug-in terminal base and intended to sit in a 24 V-class DC control circuit. Its 2CO (two changeover) contact set lets one unit drive two independent timed outputs from the same trigger — common where a sequence needs both a delayed pickup and a delayed drop, or where one timer feeds two downstream loads (solenoid + indicator, contactor + alarm) from a single start signal. Multifunction mode means the same device covers on-delay, off-delay, interval, repeat-cycle and similar timing patterns selected by dial — no spare SKU per mode, which trims panel-builder inventory when the same timer is used across different machines on the same line.
Timing envelope and supply range
Timing window runs from 0.05 s on the short end up to 300 h on the long end. That six-decade span covers everything from a sub-second pulse-stretch or debounce on a sensor input to a multi-day process interval (sterilisation hold, curing soak, seasonal drain cycling) — the dial position selects the range, and the fine adjust sits within it. At the top end, 300 h is roughly twelve and a half days, which is the ceiling the integrator needs to budget for when sizing long-tail batching or maintenance-interval reminders. Operating voltage spans 12 V minimum to 48 V maximum, so it accepts the common 24 VDC control rail directly and also drops into 12 V systems without a separate supply, while 48 V covers higher-voltage DC battery or DC-bus-derived rails. There is no AC coil variant in the listed spec — this SKU is DC-control only, which matters when a panel mixes legacy AC timers with newer DC logic: an AC-fed coil on this base will not pull.
Wiring and panel-side fit
Plug-in terminal termination means the timer body lifts out of its base socket without disturbing the wiring — swap-out on a live fault is a matter of releasing the latch and seating the replacement, not ringing out a rewire. The socket is the part that takes the panel screw-downs or push-in spring connections; the timer itself is the consumable. For a breakdown contractor that ordering discipline matters: keep a spare timer on the van, not a spare socket, because the socket rarely fails first.
Lifecycle and supply posture
No official successor or pin-compatible cross-reference is listed for this exact order code, so if the panel position must be filled with a like-for-like device, the BOM reference stays on this MPN rather than a parametric substitute.
