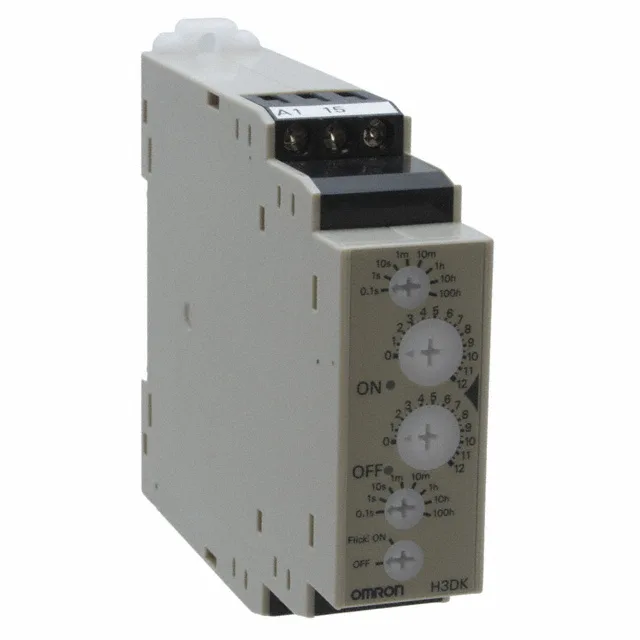

Omron H3DK-FA DC12 — Electronic Timers & Counters

Omron H3DK-FA DC12 Timer, 12 VDC, SPDT, DIN Rail

MPNH3DK-FA DC12
Active

Omron H3DK-F series repeat-cycle / twin timer, 12 VDC supply, 0.1 sec to 1200 hr delay range, SPDT (1 Form C) mechanical relay output 5 A at 250 VAC, DIN rail mount.

$122.64 – $154.44Ref. price · indicative, final on quote
Omron H3DK-FA DC12 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

H3DK-FA DC12 — Identification
ParameterValue
SeriesH3DK-F
H3DK-FA DC12 — Function & Modes
ParameterValue
FunctionRepeat Cycle, Twin Timer
H3DK-FA DC12 — Timing & Counting
ParameterValue
Delay time range0.1 Sec ~ 1200 Hrs
Timing adjustment methodScrewdriver Slot
Timing initiate methodInput Voltage
H3DK-FA DC12 — Electrical
ParameterValue
Supply voltage12VDC
H3DK-FA DC12 — I/O & Contacts
ParameterValue
Contact rating @ voltage5A @ 250VAC
Contact circuit (Form)SPDT (1 Form C)
Relay typeMechanical Relay
H3DK-FA DC12 — Mechanical
ParameterValue
Mounting typeDIN Rail
Termination styleScrew Terminal

Product details

Where this timer drops into the panel

The Omron H3DK-FA DC12 is a DIN-rail-mount repeat-cycle / twin timer built around a single SPDT (1 Form C) mechanical relay contact rated 5 A at 250 VAC, with a 12 VDC supply rail and a delay range of 0.1 sec to 1200 hr set by screwdriver-slot adjustment on the front face — so it covers anything from a short cycling pulse to a multi-day sequencing interval from a single SKU.

Lifecyle and how to source it

For a procurement line this means specifying it by the exact order code H3DK-FA DC12 — supply voltage (12 VDC) and the SPDT / 5 A contact rating are the two constraints that lock the fit, and neither is shared with the higher-voltage AC siblings of the series — then pulling current availability and pricing against the BOM quantity through an RFQ.

MPN
H3DK-FA DC12
