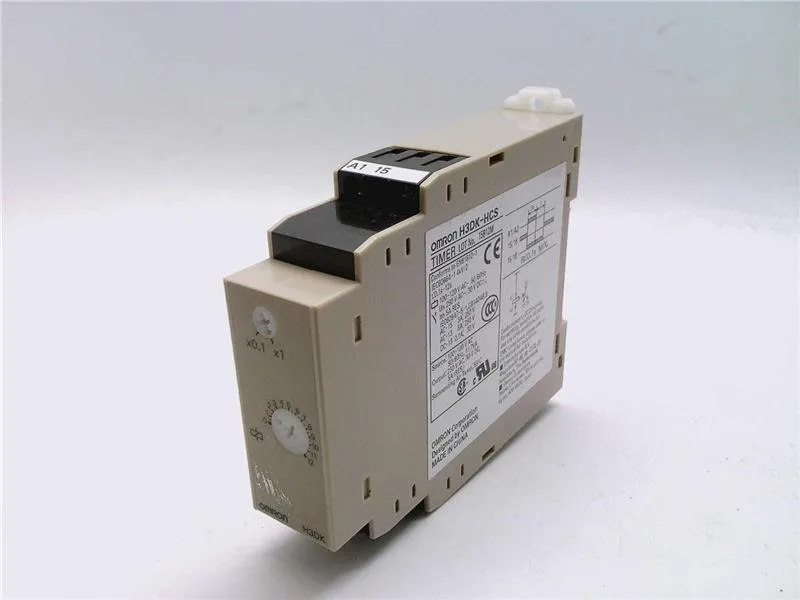

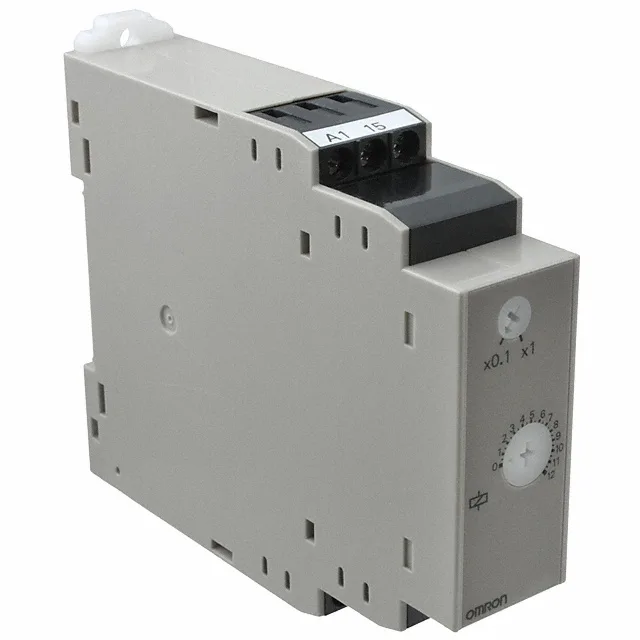

The Omron H3DK-HCS AC100-120V is an off-delay time relay from the H3DK-H series, designed for timing control in industrial panels. It switches a SPDT (1 Form C) contact rated at 5A @ 250VAC, sufficient for pilot duty, signal lamps, or small solenoid loads. The delay range is adjustable from 0.1 to 12 seconds via a screwdriver slot, initiated by application of the supply voltage. Mounts on DIN rail with screw terminals, fitting standard panel layouts. The 100–120VAC supply means it drops into existing control transformer circuits without a separate DC power supply.
Omron H3DK-HCS AC100-120V Time Delay Relay, Off-Delay, 0.1-1
MPNH3DK-HCS AC100-120V
Active
Omron H3DK-H series, off-delay time relay, SPDT (1 Form C), 0.1–12 sec, 5A @ 250VAC, 100–120VAC supply, DIN rail, screw terminals.
$47.75Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | H3DK-H |
| Parameter | Value |
|---|---|
| Function | Off-Delay |
| Parameter | Value |
|---|---|
| Delay time range | 0.1 Sec ~ 12 Sec |
| Timing adjustment method | Screwdriver Slot |
| Timing initiate method | Input Voltage |
| Parameter | Value |
|---|---|
| Supply voltage | 100 ~ 120VAC |
| Parameter | Value |
|---|---|
| Contact rating @ voltage | 5A @ 250VAC |
| Contact circuit (Form) | SPDT (1 Form C) |
| Relay type | Mechanical Relay |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Termination style | Screw Terminal |
Product details
Frequently asked questions
Where can I buy H3DK-HCS AC100-120V and get a price?
This part is sourced to order through independent distribution. Submit an RFQ — availability and current pricing are confirmed at quote time. No stock or price figures are listed here.
What is the function and timing range of H3DK-HCS AC100-120V?
It is an off-delay relay with an adjustable delay from 0.1 to 12 seconds. Timing starts when the 100–120VAC supply is removed.
