What's in the box and what it does

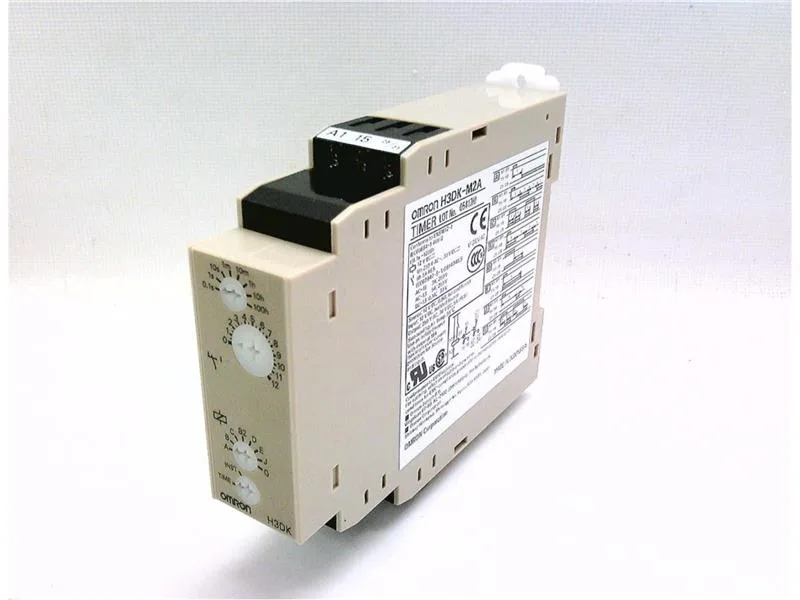

The Omron H3DK-M2A DC12 is a programmable multi-function timer from the H3DK-M series, housed in a DIN-rail-mount box with screw terminals — drops onto a standard 35 mm rail and accepts solid or ferruled conductors on the field side (cites:,). Timing ranges from 0.1 second out to 1200 hours on a single dial — a wide enough window that the same unit covers sub-second pulse-shaping, conveyor dwell, and multi-day process schedules (cites:). Multi-function programming means one SKU handles on-delay, off-delay, interval, and other modes set via the front-face screwdriver slot — useful when a panel-builder wants one timer line item in the BOM rather than four part numbers (cites:,).
Output contacts and switching duty
The DPDT (2 Form C) mechanical relay is rated 5 A at 250 VAC per pole — comfortably covers coil switching on contactors up to that frame and direct lamp/auxiliary loads at panel scale (cites:,). Timing is initiated by the input voltage itself — no separate trigger terminal — which simplifies the wiring: feed 12 VDC to the supply terminals and the timer starts on its configured mode (cites:,). Mechanical relay contacts give a dry, voltage-free switching element; pair with an interposing relay if the downstream load is DC or if higher inrush is expected, since electromechanical contacts wear on hot inrush rather than steady state (cites:,).
Fitting it into the panel
DIN-rail mounting and a compact box package means the timer sits alongside other 22.5 mm or 45 mm wide modular devices — confirm the panel cutout footprint matches the H3DK-M family face dimensions before pulling the existing timer out, since neighbouring timer families look similar from the front but differ in depth and terminal pitch (cites:,). Screwdriver-slot adjustment on the front dial is intentional — tamper-resistant enough that operators won't drift the setting, but easy for the night-shift tech with a flat blade to re-range during a callout (cites:).
