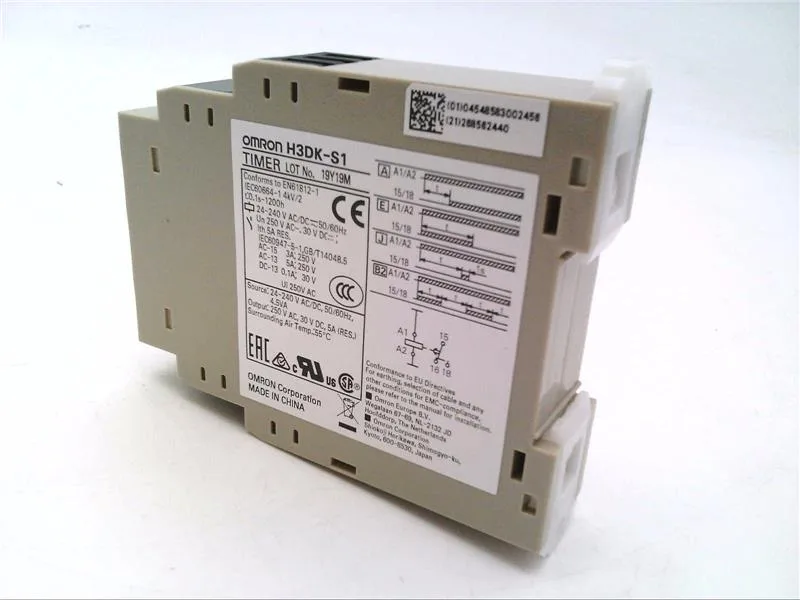

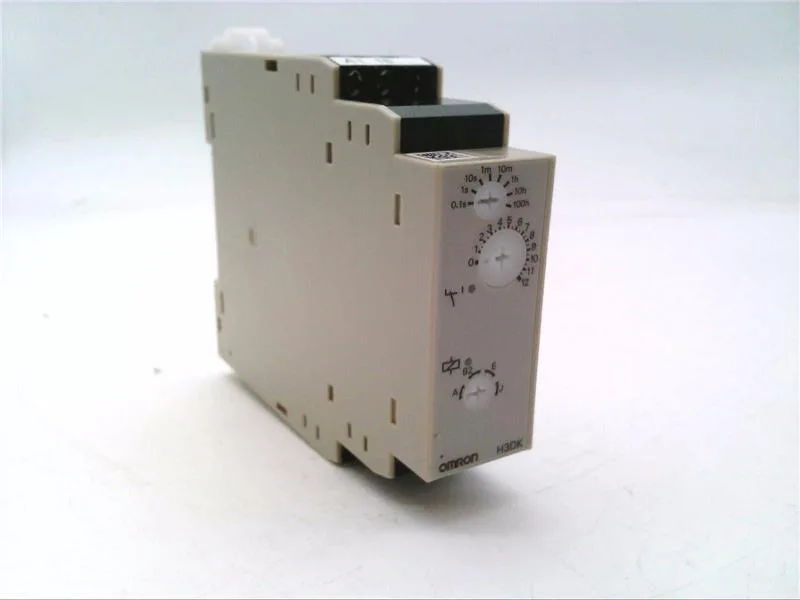

Omron H3DK-S1 AC/DC24-240
MPNH3DK-S1 AC/DC24-240
Active
RELAY TIME DELAY 1200HRS 5A 250V
$25.76Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | H3DK-S |
| Electrical connection type | Screw |
| Coil voltage | 24 to 240V AC/DC |
| Current rating | 5 A |
| Power consumption | 4.5 VA |
| Contact form | SPDT |
| IP rating | IP20; IP30 |
| Adjustment interface | Analog |
| Relay mounting style | DIN-Rail |
| Number of pins (Terminals) | 6 |
| Maximum operating temperature | 55 °C |
| Minimum operating temperature | -20 °C |
All specifications
| Parameter | Value |
|---|---|
| Body depth | 3.93 in |
| Body width | 0.88 in |
| Body height | 0.88 in |
| Contact material | Gold Plating; Silver Alloy |
| Electrical operating durability | 100,000 |
| Mechanical operating durability | 1,000,000 |
| Standards | (EMI) EN 61812-1; (EMS) EN 61812-1; CCC: GB/T 14048.5 Pollution Degree 2, Overvoltage Category III; cURus: UL 508/CSA C22.2 No. 14; Emission AC Mains: EN 55011 Class B; EN 50274: Finger Protection, Back-of-Hand Proof; EN 61812-1: Pollution Degree 2, Overvoltage Category III; Fluctuations and Flicker: EN61000-3-3; Harmonic Current: EN 61000-3-2; Immunity Burst: IEC 61000-4-4; Immunity Conducted Disturbance: IEC 61000-4-6; Immunity ESD: IEC 61000-4-2; Immunity RF-interference: IEC 61000-4-3; Immunity Surge: IEC 61000-4-5; Immunity Voltage Dip/Interruption: IEC 61000-4-11; LR: Test Specification No. 1-2002 Category ENV 1.2; Radiated Emissions: EN 55011 Class B |
| Brand | OMRON |
| Delay function | Flicker On StartIntervalOn DelayOne Shot Output |
| Contact rating | 5 A @ 250V (Resistive Load) |
| Maximum time setting | 1,200 hr |
| Minimum time setting | 0.1 sec |
| Operating time accuracy | ±1% ±10 ms in a range of 1.2 s; ±1% FS max |
| Number of delay functions | 8 |
MPN
H3DK-S1 AC/DC24-240
