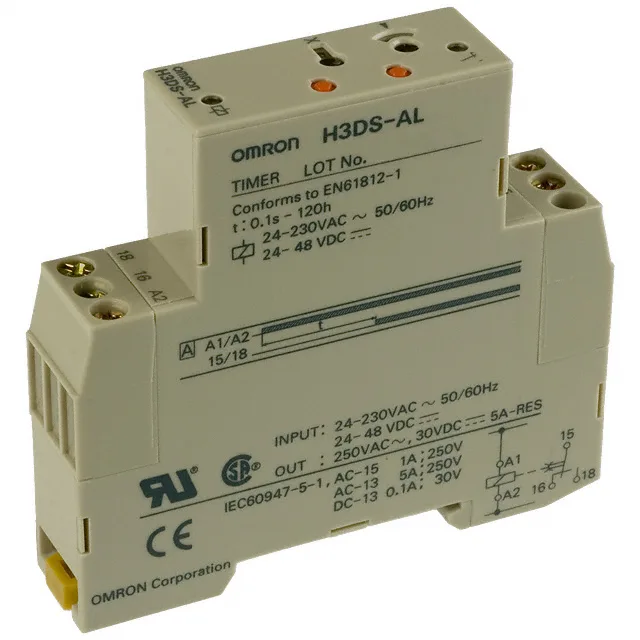

Omron H3DS-AL AC24-230/DC24-48
MPNH3DS-AL AC24-230/DC24-48
RELAY TIME DELAY 120HRS 5A 250V
$62.60 – $146.26Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Electrical connection type | Screw |
| Input voltage | 24 to 48V DC; 24 to 230V AC |
| Current rating | 0.15 A |
| Contact form | SPDT |
| IP rating | IP20; IP30 |
| Adjustment interface | Analog |
| Maximum operating temperature | 55 °C |
| Minimum operating temperature | -10 °C |
| Body depth | 2.91 in |
| Body width | 0.68 in |
| Body height | 0.68 in |
| Electrical operating durability | 100,000 |
All specifications
| Parameter | Value |
|---|---|
| Mechanical operating durability | 1,000,000 |
| Standards | 250 V 1 A/DC-13; 250 V 5A/AC-15; 30 V 0.1 A); Conforms to EN 61812-1, IEC 60664-1 4 kV/2, VDE 0106/P100; Output Category According to IEC 60947-5-1 (AC-13; UL508, CSA C22.2 No. 14 |
| Brand | OMRON |
| Contact rating | 0.50 A @ 125V (Resistive Load); 5A @ 30V (Resistive Load) |
| Delay function | ON Delay |
| Pin count | 6 |
| Relay operation | Solid State |
| Maximum time setting | 1.2 sec |
| Minimum time setting | 0.1 sec |
| Operating time accuracy | ±1% ±10 ms in a range of 1.2 s; ±1% FS max |
| Number of delay functions | 7 |
MPN
H3DS-AL AC24-230/DC24-48
