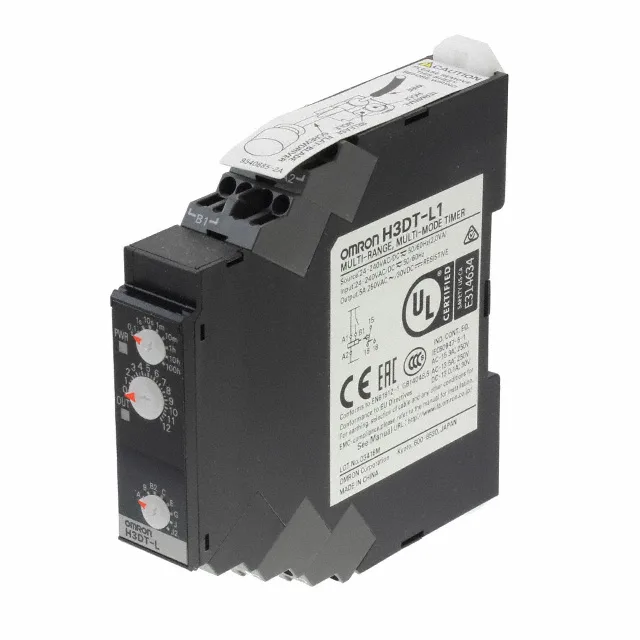

Omron H3DT-L1 AC/DC24-240 Multi-Function Timer
MPNH3DT-L1 AC/DC24-240
Active
RELAY TIME DELAY 1200HRS DIN RL
$44.45 – $90.51Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | H3DT-L |
| Termination type | Push-In Terminal |
| Operating voltage max. | 240 V |
| Operating voltage min. | 24 V |
| Switching voltage - AC | 250 V |
| Switching voltage - DC | 30 V |
| Switching current - AC | 5 A |
| Switching current - DC | 5 A |
| Switching power - AC | 1.25 kVA |
| Switching power - DC | 150 W |
| Contact configuration | 1CO |
| Mode of operation | ON-Delay;Flicker OFF Start;Flicker ON Start;Signal ON / OFF-Delay;Interval;One Shot Output |
| IP rating | IP30 |
| Time setting max. | 1200 h |
| Time setting min. | 0.1 s |
| Number of functions | 8 |
| Number of time ranges | 8 |
MPN
H3DT-L1 AC/DC24-240
