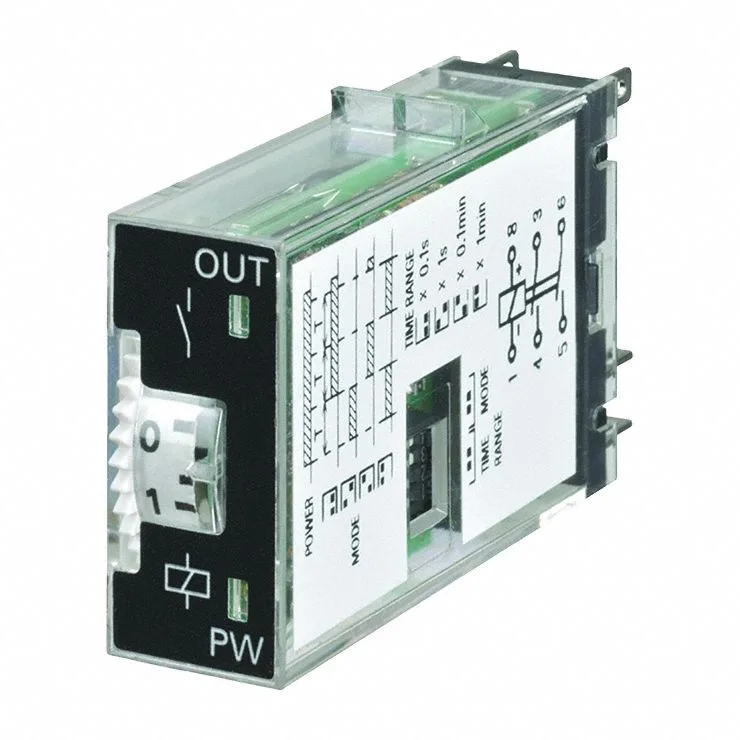

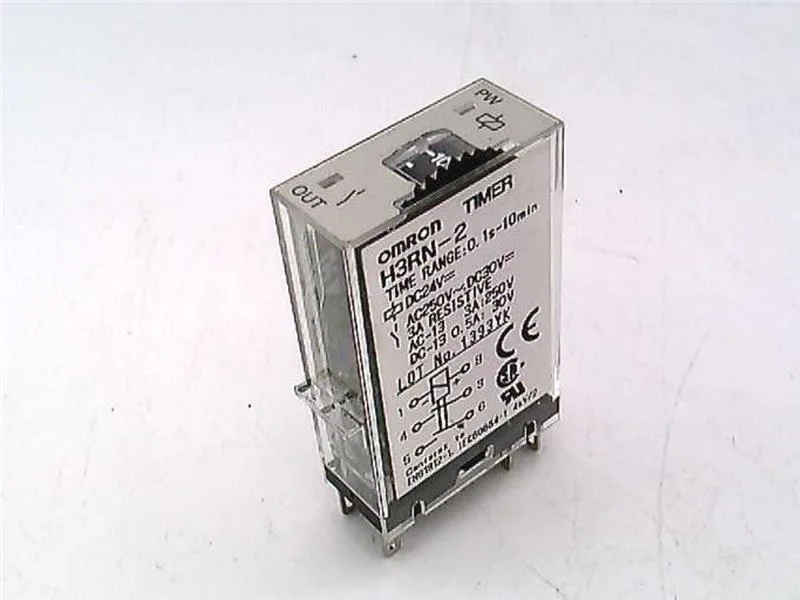

Omron H3RN-2 DC24 Multi-Function Timer Relay
MPNH3RN-2 DC24
Active
RELAY TIME DELAY 10MIN 3A 250V
$75.36 – $111.90Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Electrical connection type | Pin |
| Input voltage | 24V DC |
| Contact form | DPST-NO |
| IP rating | IP40 |
| Adjustment interface | Analog |
| Relay mounting style | Socket |
| Maximum operating temperature | 55 °C |
| Minimum operating temperature | -10 °C |
| Body depth | 1.86 in |
| Body width | 0.5 in |
| Body height | 1.22 in |
| Electrical operating durability | 100,000 |
All specifications
| Parameter | Value |
|---|---|
| Mechanical operating durability | 1,000,000 |
| Standards | (EMI) EN61812-1; (EMS) EN61812-1; Conforms to EN61812-1, IEC60664-1 4 kV/2; Emission AC Mains: EN55011 Group 1 Class A; Emission Enclosure: EN55011 Group 1 Class A; Immunity Burst: IEC61000-4-4; Immunity Conducted Disturbance: IEC61000-4-6; Immunity ESD: IEC61000-4-2; Immunity RF-interference: IEC61000-4-3; Immunity Surge: IEC51000-4-5; Immunity Voltage Dip/Interruption: IEC61000-4-11; Output category according to IEC60947-5-1; UL508, CSA C22.2 No. 14 |
| Brand | OMRON |
| Delay function | Flicker Off Start; Flicker On Start; Interval; On Delay |
| Pin count | 8 |
| Relay operation | Solid State |
| Contact rating | 3 A @ 250V (Resistive Load) |
| Maximum time setting | 1 sec |
| Minimum time setting | 0.1 sec |
| Operating time accuracy | ±1% ±10 ms in a range of 1 s; ±1% FS max |
| Number of delay functions | 4 |
MPN
H3RN-2 DC24
