Omron H3RN224DC — Electronic Timers & Counters

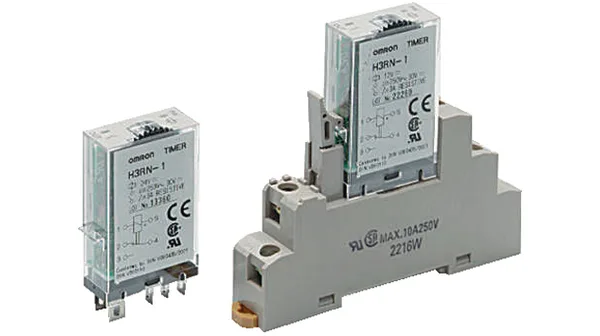

Omron H3RN224DC Multi-Function Timer Relay

MPNH3RN224DC

Time Lag Relay H3RN 10min 24VDC 2NO Number of Functions 4

$71.68Ref. price · indicative, final on quote
Omron H3RN224DC datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

H3RN224DC — Identification
ParameterValue
SeriesH3RN
H3RN224DC — Function & Modes
ParameterValue
Operation modesFlicker OFF Start;Flicker ON Start Selectable by DIP Switch;Interval;ON-Delay
H3RN224DC — Mechanical
ParameterValue
Termination typePush-In Terminal
H3RN224DC — Environmental
ParameterValue
Protection rating (IP)IP20
H3RN224DC — Electrical
ParameterValue
Operating voltage, max.24 VDC
H3RN224DC — I/O & Contacts
ParameterValue
Contact configuration2NO
Switching current (AC)3 A
H3RN224DC — Timing & Counting
ParameterValue
Time setting, min.0.1 s
Time setting, max.10 min
Number of time ranges4
H3RN224DC — Other specifications
ParameterValue
Number of functions4
Switching power - AC750 VA
Switching voltage - AC250 V
MPN
H3RN224DC
