Omron H3Y-2 AC100-120 30S

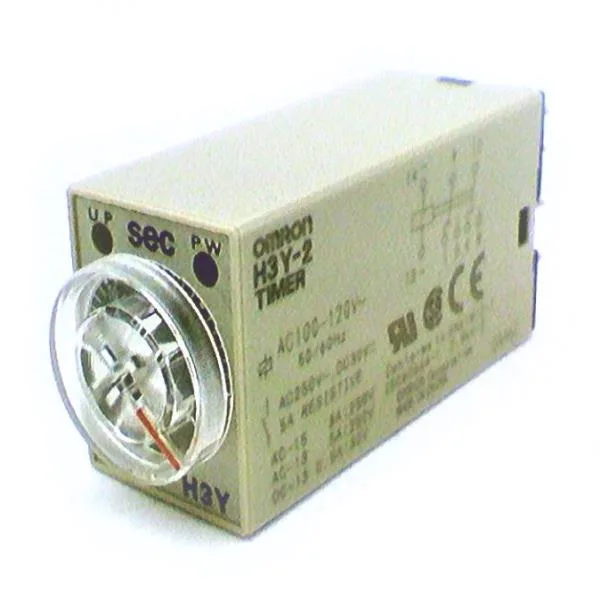

Omron H3Y-2 AC100-120 30S Time Delay Relay, 1-30 Sec, DPDT

MPN H3Y-2 AC100-120 30S
Active

Omron H3Y series, time delay relay, DPDT (2 Form C), 100-120VAC supply, adjustable 1-30 sec delay, 5A @ 250VAC contact rating, socketable plug-in mounting.

$41.91 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

H3Y-2 AC100-120 30S specifications
ParameterValue
SeriesH3Y
TypeMechanical Relay
Supply voltage100 to 120VAC
MountingSocket
PackageBulk
Delay time1 Sec to 30 Sec
Timing initiate methodInput Voltage
Timing adjustment methodHand Dial

Product details

The Omron H3Y-2 AC100-120 30S is a socket-mount time delay relay from the H3Y series, offering both off-delay and on-delay functions with a hand-dial-adjustable window of 1 second to 30 seconds. Supply is 100-120VAC, and the DPDT (2 Form C) output contacts are rated 5A at 250VAC — enough for pilot duty, small contactor coils, or signal interposing in a control panel.

The 5A @ 250VAC contact rating is resistive (AC-1 class); derate for inductive motor or solenoid loads. The 100-120VAC supply coil is tapped for standard North American control voltages — verify your panel's control transformer taps before wiring. The socketable plug-in termination means the relay body pulls out for replacement without disturbing panel wiring, provided the matching socket (Omron PYF-08A or equivalent) is already in the rail.

MPN
H3Y-2 AC100-120 30S
