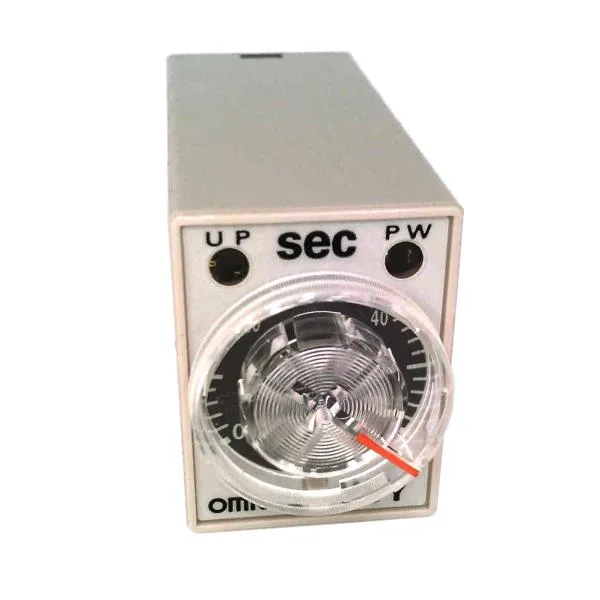

Omron H3Y-2 AC100-120 60S

Omron H3Y-2 AC100-120 60S Time Delay Relay, DPDT 5A 250V

MPN H3Y-2 AC100-120 60S
Active

Omron H3Y series, time delay relay, DPDT (2 Form C), 5A @ 250VAC, 2 Sec ~ 60 Sec delay, 100 ~ 120VAC supply, socketable plug-in.

$41.91 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

H3Y-2 AC100-120 60S specifications
ParameterValue
SeriesH3Y
TypeMechanical Relay
Supply voltage100 to 120VAC
MountingSocket
PackageBulk
Delay time2 Sec to 60 Sec
Timing initiate methodInput Voltage
Timing adjustment methodHand Dial

Product details

The Omron H3Y-2 AC100-120 60S is a socketable, mechanical time delay relay from the H3Y series, offering both off-delay and on-delay functions with a hand-dial adjustable timing range of 2 to 60 seconds. It switches DPDT (2 Form C) contacts rated at 5A @ 250VAC, powered by a 100-120VAC supply via a plug-in termination style. Timing is initiated by input voltage, making it a straightforward drop-in for panel timing sequences where the load circuit and coil share the same AC supply.

The 5A @ 250VAC contact rating on DPDT (2 Form C) means each pole switches a resistive load up to 5 amps at line voltage — enough for pilot lights, contactor coils, or small solenoid valves in a control panel. The 2-60 second dial range covers common timing jobs like motor start sequencing, conveyor delay, or pump alternation. The socketable plug-in base (standard 8-pin octal) lets you swap the relay without disturbing panel wiring — useful for MRO spares or quick troubleshooting on a live cabinet.

MPN
H3Y-2 AC100-120 60S
