The Omron H3Y-2 AC24 5S is a DPDT (2 Form C) time delay relay with a 24VAC coil, adjustable delay from 0.2 to 5 seconds via a hand dial, and contact rating of 5A at 250VAC. It supports both off-delay and on-delay functions, triggered by input voltage. The socketable plug-in design means it mounts into a standard 8-pin or 11-pin relay socket — common in control panels for conveyor, pump, or compressor sequencing.

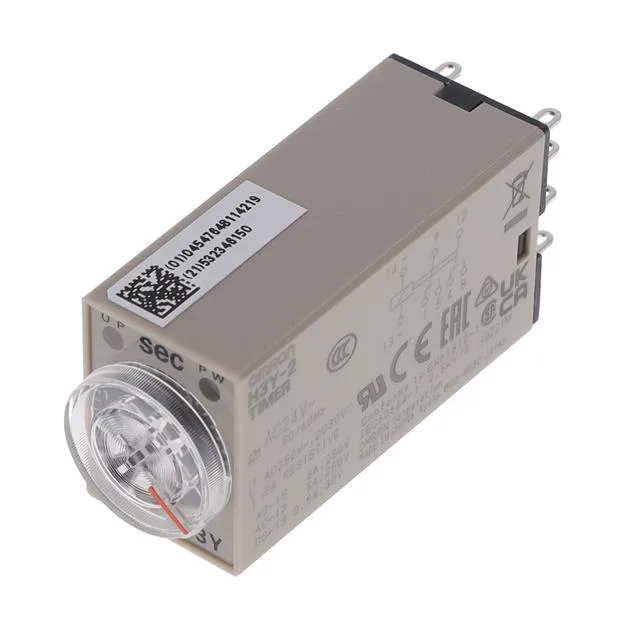

Omron H3Y-2 AC24 5S Time Delay Relay, 0.2-5 Sec, 5A
MPNH3Y-2 AC24 5S
Active
Omron H3Y series, DPDT (2 Form C) time delay relay, 24VAC supply, 0.2 Sec ~ 5 Sec adjustable delay, 5A @ 250VAC contact rating, socketable plug-in termination.
$32.39Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | H3Y |
| Parameter | Value |
|---|---|
| Function | Off-Delay, On-Delay |
| Parameter | Value |
|---|---|
| Delay time range | 0.2 Sec ~ 5 Sec |
| Timing adjustment method | Hand Dial |
| Timing initiate method | Input Voltage |
| Parameter | Value |
|---|---|
| Supply voltage | 24VAC |
| Parameter | Value |
|---|---|
| Contact rating @ voltage | 5A @ 250VAC |
| Contact circuit (Form) | DPDT (2 Form C) |
| Relay type | Mechanical Relay |
| Parameter | Value |
|---|---|
| Mounting type | Socketable |
| Termination style | Plug In |
Product details
Frequently asked questions
What is the supply voltage for H3Y-2 AC24 5S?
24VAC. The coil is rated for 24VAC only — not 24VDC, not dual-rated.
What is the contact rating of H3Y-2 AC24 5S?
5A at 250VAC. That's the resistive load rating; inductive loads will need derating per the manufacturer's curve.
Where can I buy H3Y-2 AC24 5S?
Sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing confirmed at quote time.
