Omron H3Y-2 AC24 60S — Electronic Timers & Counters

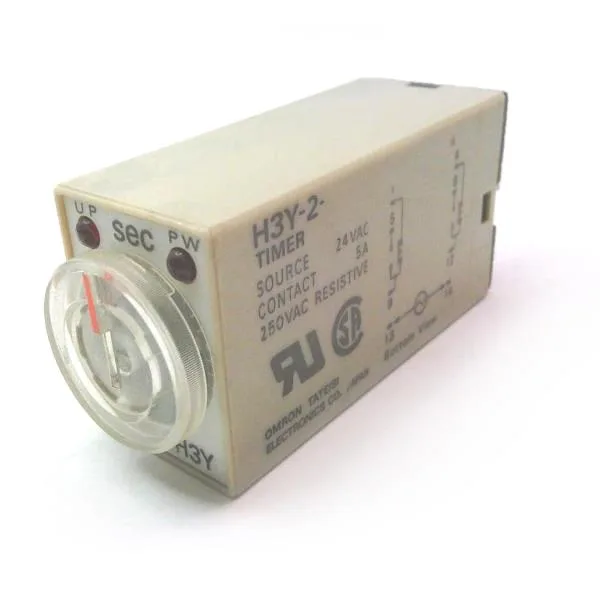

Omron H3Y-2 AC24 60S Time Delay Relay, 24VAC, 60 Sec, DPDT

MPNH3Y-2 AC24 60S
Active

Omron H3Y series, DPDT (2 Form C) mechanical time delay relay, 24VAC, 2 Sec ~ 60 Sec hand-dial adjustment, 5A @ 250VAC contact rating, socketable plug-in termination.

$34.29Ref. price · indicative, final on quote
Omron H3Y-2 AC24 60S datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

H3Y-2 AC24 60S — Identification
ParameterValue
SeriesH3Y
H3Y-2 AC24 60S — Function & Modes
ParameterValue
FunctionOff-Delay, On-Delay
H3Y-2 AC24 60S — Timing & Counting
ParameterValue
Delay time range2 Sec ~ 60 Sec
Timing adjustment methodHand Dial
Timing initiate methodInput Voltage
H3Y-2 AC24 60S — Electrical
ParameterValue
Supply voltage24VAC
H3Y-2 AC24 60S — I/O & Contacts
ParameterValue
Contact rating @ voltage5A @ 250VAC
Contact circuit (Form)DPDT (2 Form C)
Relay typeMechanical Relay
H3Y-2 AC24 60S — Mechanical
ParameterValue
Mounting typeSocketable
Termination stylePlug In

Product details

The Omron H3Y-2 AC24 60S is a DPDT (2 Form C) mechanical time delay relay from the H3Y series, powered by 24VAC and adjustable from 2 seconds up to 60 seconds via a front-panel hand dial. Its contacts are rated for 5A at 250VAC, covering typical control and small load switching in panel applications.

Fit and function

Socketable plug-in termination means this relay drops into an 8- or 11-pin octal-style base — common across Omron H3Y and many third-party sockets. Timing initiate method is input voltage: apply 24VAC to start the delay cycle, remove it for off-delay mode. The hand dial gives a continuous sweep across the 2–60 second range, no DIP switches or external resistors needed.

Frequently asked questions

What is the delay range and how is it set?

Adjustable from 2 seconds to 60 seconds via a front-panel hand dial. No external timers or programming tools required.

What is the contact configuration and rating?

DPDT (2 Form C) rated at 5A at 250VAC. Suitable for switching contactors, pilot lights, solenoid valves, and other control loads within that envelope.

Where can I buy H3Y-2 AC24 60S and how is it quoted?

Sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit a request for your target quantity.

MPN
H3Y-2 AC24 60S
