Omron H3Y-2 DC12 5S — Electronic Timers & Counters

Omron H3Y-2 DC12 5S Time Delay Relay, DPDT 5A 250V, 0.2-5s

MPNH3Y-2 DC12 5S
Active

Omron H3Y series, DPDT (2 Form C) mechanical time delay relay, 0.2 Sec ~ 5 Sec delay, 12VDC supply, 5A @ 250VAC contact rating, plug-in socketable.

$35.56Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

H3Y-2 DC12 5S — Identification
ParameterValue
SeriesH3Y
H3Y-2 DC12 5S — Function & Modes
ParameterValue
FunctionOff-Delay, On-Delay
H3Y-2 DC12 5S — Timing & Counting
ParameterValue
Delay time range0.2 Sec ~ 5 Sec
Timing adjustment methodHand Dial
Timing initiate methodInput Voltage
H3Y-2 DC12 5S — Electrical
ParameterValue
Supply voltage12VDC
H3Y-2 DC12 5S — I/O & Contacts
ParameterValue
Contact rating @ voltage5A @ 250VAC
Contact circuit (Form)DPDT (2 Form C)
Relay typeMechanical Relay
H3Y-2 DC12 5S — Mechanical
ParameterValue
Mounting typeSocketable
Termination stylePlug In

Product details

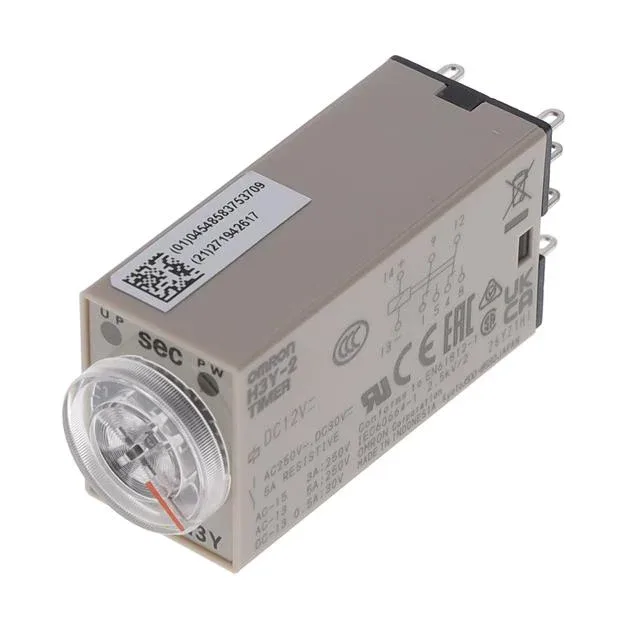

The Omron H3Y-2 DC12 5S is a socket-mount mechanical time delay relay from the established H3Y series. It gives you a DPDT (2 Form C) contact set rated at 5A @ 250VAC, with an adjustable off-delay or on-delay window of 0.2 to 5 seconds set by a hand dial on the top.

The 5A @ 250VAC contact rating covers pilot-duty and small-load switching — think contactor coils, signal lamps, solenoid valves, or PLC digital inputs. It is not sized for motor starting; the DPDT form C contacts are meant for control circuits, not power. The 0.2 to 5 second adjustment range, set by a hand dial on the relay top, suits short-interval sequencing like a conveyor start-delay or a pump-off delay. The 12VDC coil draws about 0.2A from the control supply — verify your power budget if you are running multiple units off a single 12V bus.

Frequently asked questions

What is the delay range and how is it set?

The delay is adjustable from 0.2 seconds to 5 seconds, set by a hand dial on the top of the relay. The function can be configured as off-delay or on-delay.

Where can I buy the H3Y-2 DC12 5S?

The H3Y-2 DC12 5S is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.
