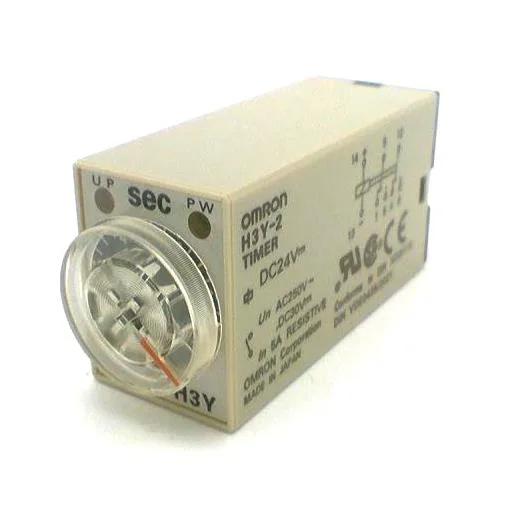

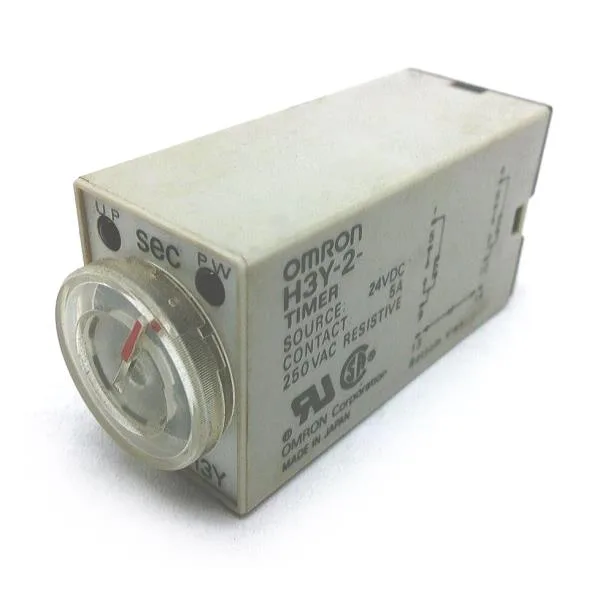

Omron H3Y-2 DC24 1S in the H3Y timer family
The H3Y-2 DC24 1S is an Omron H3Y-series timing module wired for 24 VDC supply and arranged as DPDT (2 Form C) — two changeover contacts in one package, so a single timer can drive two independent circuits from one setpoint. The unit runs a 0.1 Sec ~ 1 Sec window adjustable via a hand dial on the front face, selectable between off-delay and on-delay timing initiated by input voltage — meaning the same module covers release-delay and pull-in-delay roles without re-wiring.
Contact rating and what it means in a panel
Contacts are rated 5 A at 250 VAC on a mechanical relay — sized for pilot-duty switching of contactors, solenoid valves, and indicator loads common in control panels, not for direct motor switching. Plug-in termination to a standard 8-pin octal socket keeps replacement a pull-and-swap job on a live panel: the base stays wired, the timer module lifts out, and a spare drops in without disturbing field wiring.
Lifecycle posture
Manufacturer status is Active — the H3Y line remains in normal production, so this order code is sourced as a current catalog line rather than a discontinued or last-time-buy position.
