Omron H3Y-2 DC24 5S

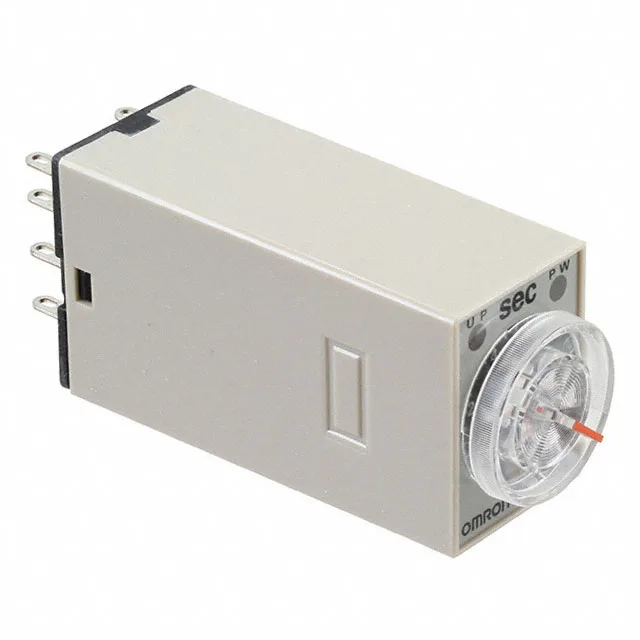

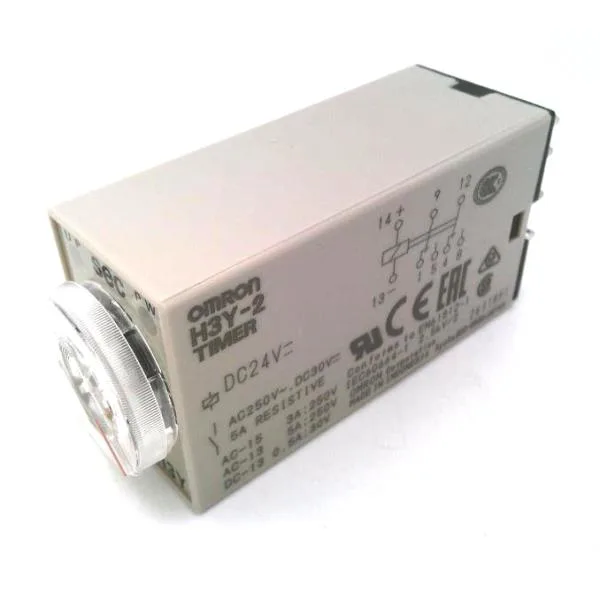

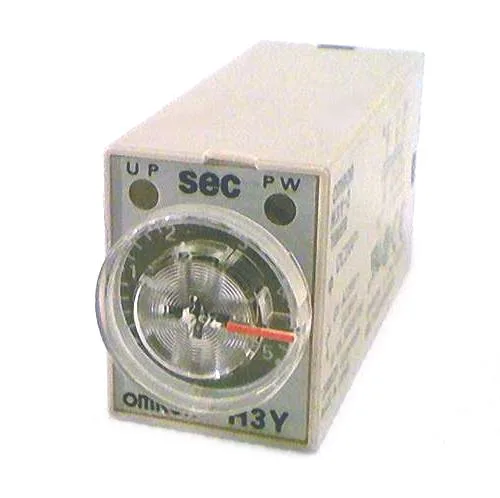

Omron H3Y-2 DC24 5S Timer, DPDT, 0.2–5s, 24VDC

MPN H3Y-2 DC24 5S
Active

Omron H3Y series H3Y-2 DC24 5S off-delay/on-delay timer, DPDT mechanical relay, 0.2 Sec to 5 Sec, 24VDC supply, plug-in socket mount.

$32.39 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

H3Y-2 DC24 5S specifications
ParameterValue
SeriesH3Y
TypeMechanical Relay
Supply voltage24 VDC
MountingSocket
PackageBulk
Delay time0.2 Sec to 5 Sec
Timing initiate methodInput Voltage
Timing adjustment methodHand Dial

Product details

What lands in the panel when this timer arrives

The Omron H3Y-2 DC24 5S is a plug-in, socketable timer in the H3Y series, built around a DPDT (2 Form C) mechanical relay that switches 5A at 250VAC on its output — the contact pair that decides whether the downstream contactor, solenoid valve, or indicator stage actually fires after the delay window. Timing is adjustable from 0.2 Sec to 5 Sec via a hand dial on the front face, initiated by the input voltage itself, so a single 24VDC control rail both powers the unit and starts the delay — common in control panels where a 24VDC logic supply is already present and a separate trigger wire would be wasted copper.

Off-delay vs on-delay in the same package

Function is listed as both off-delay and on-delay, which on the H3Y line is selected at the socket or terminal block rather than by internal strapping — useful where the same panel builder stock number covers either a drop-out delay (fan run-on) or a pick-up delay (sequenced start) without holding two SKUs. Termination is plug-in, so field replacement is a pull-and-swap from the 8-pin (or 11-pin, family-typical) socket without disturbing the wired loom — a serviceability point that matters when the timer lives in a densely packed relay row behind a wiring duct.

Procurement posture

Supply is quoted to order through independent industrial distribution, with availability and current unit pricing confirmed at RFQ against the BOM line; no channel exclusivity is implied and no stock count is asserted here.

MPN
H3Y-2 DC24 5S
