The Omron H3Y-2 DC24 60S is a socket-mount time delay relay from the H3Y series, switching DPDT (2 Form C) contacts rated 5 A at 250 VAC. It runs on a 24 VDC supply and covers a 2-second to 60-second delay range, adjustable via the front hand dial. The timing is initiated by applying the input voltage, and the relay supports both off-delay and on-delay functions.

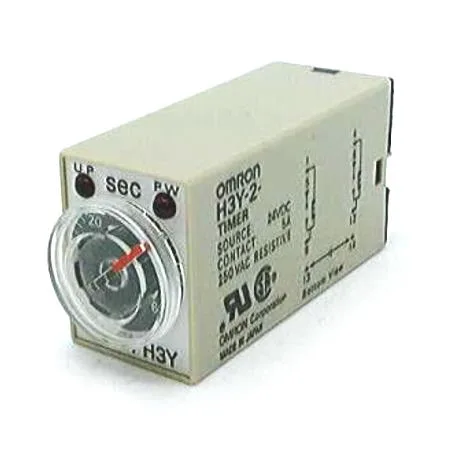

Omron H3Y-2 DC24 60S Time Delay Relay, 24VDC, 60s
MPNH3Y-2 DC24 60S
Active
Omron H3Y-2 DC24 60S, time delay relay, DPDT 5A @ 250VAC, 24 VDC, adjustable 2–60 sec, socket-mount.
$32.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | H3Y |
| Parameter | Value |
|---|---|
| Function | Off-Delay, On-Delay |
| Parameter | Value |
|---|---|
| Delay time range | 2 Sec ~ 60 Sec |
| Timing adjustment method | Hand Dial |
| Timing initiate method | Input Voltage |
| Parameter | Value |
|---|---|
| Supply voltage | 24VDC |
| Parameter | Value |
|---|---|
| Contact rating @ voltage | 5A @ 250VAC |
| Contact circuit (Form) | DPDT (2 Form C) |
| Relay type | Mechanical Relay |
| Parameter | Value |
|---|---|
| Mounting type | Socketable |
| Termination style | Plug In |
Product details
Frequently asked questions
What is the delay time range of the H3Y-2 DC24 60S?
The delay time is adjustable from 2 seconds to 60 seconds via a hand dial on the relay body.
What is the contact rating of the H3Y-2 DC24 60S?
The DPDT contacts are rated 5 A at 250 VAC.
What supply voltage does the H3Y-2 DC24 60S require?
It requires a 24 VDC supply voltage.
Where can I buy the H3Y-2 DC24 60S?
This part is sourced and quoted to order against an RFQ through independent distribution channels. Availability and current pricing are confirmed at quote time.
MPN
H3Y-2 DC24 60S
