Omron H3Y-4 AC100-120 10S — Electronic Timers & Counters

Omron H3Y-4 AC100-120 10S Time Delay Relay, 4PDT, 0.5-10 Sec

MPNH3Y-4 AC100-120 10S
Active

Omron H3Y series, time delay relay, 4PDT (4 Form C), 0.5 Sec ~ 10 Sec delay, 100 ~ 120VAC supply, 3A @ 250VAC contact rating, socketable plug-in.

$45.36Ref. price · indicative, final on quote
Omron H3Y-4 AC100-120 10S datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

H3Y-4 AC100-120 10S — Identification
ParameterValue
SeriesH3Y
H3Y-4 AC100-120 10S — Function & Modes
ParameterValue
FunctionOff-Delay, On-Delay
H3Y-4 AC100-120 10S — Timing & Counting
ParameterValue
Delay time range0.5 Sec ~ 10 Sec
Timing adjustment methodHand Dial
Timing initiate methodInput Voltage
H3Y-4 AC100-120 10S — Electrical
ParameterValue
Supply voltage100 ~ 120VAC
H3Y-4 AC100-120 10S — I/O & Contacts
ParameterValue
Contact rating @ voltage3A @ 250VAC
Contact circuit (Form)4PDT (4 Form C)
Relay typeMechanical Relay
H3Y-4 AC100-120 10S — Mechanical
ParameterValue
Mounting typeSocketable
Termination stylePlug In

Product details

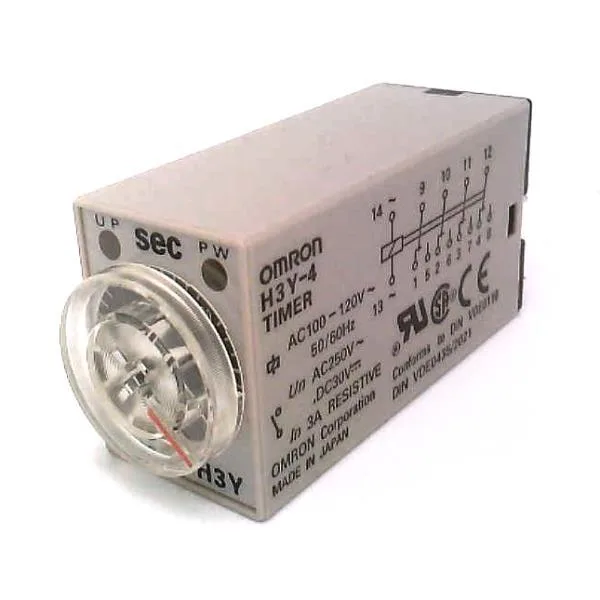

The Omron H3Y-4 AC100-120 10S is a mechanical time delay relay in the H3Y series, offering both off-delay and on-delay functions. It switches via 4PDT (4 Form C) contacts rated at 3A @ 250VAC, powered by a 100-120VAC supply. The delay is adjustable from 0.5 to 10 seconds via a hand dial, and the timing is initiated by applying input voltage.

The hand dial on top lets you tweak the delay without pulling the relay — useful during commissioning when you're dialing in a conveyor sequence or pump-off delay.

Listed as active in production — no end-of-life notice.

Frequently asked questions

What is the delay range and how is it set?

The delay is adjustable from 0.5 to 10 seconds via a hand dial on the relay body. Timing is initiated when the input voltage (100-120VAC) is applied.

What contact configuration and rating does this relay have?

It has 4PDT (4 Form C) contacts rated at 3A @ 250VAC, suitable for switching small motor contactor coils, pilot lights, or solenoid valves.

MPN
H3Y-4 AC100-120 10S
