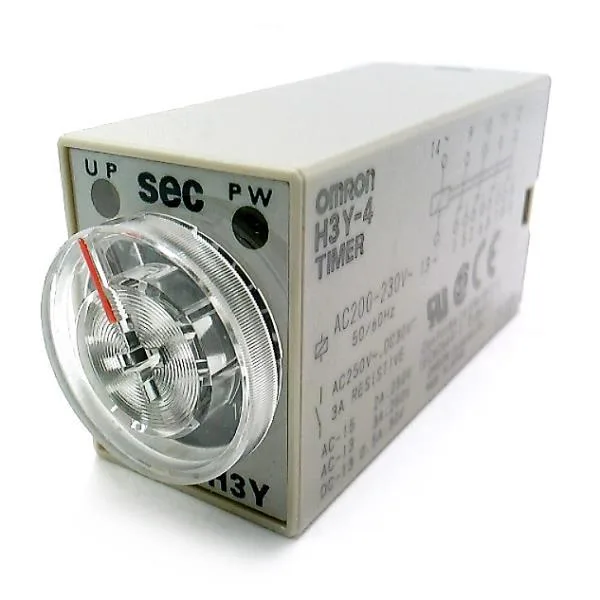

The Omron H3Y-4 AC200-230 30S is a socket-mount time delay relay from the H3Y series, offering both off-delay and on-delay functions. Its adjustable delay spans 1 to 30 seconds, set via a front-panel hand dial — no programming tool needed for field changes. The 4PDT (4 Form C) output contacts are rated at 3 A at 250 VAC, suitable for switching small motor starters, contactor coils, or signal lamps in control panels. The 200–230 VAC supply voltage matches standard European and Asian line voltages without a separate control transformer. Socketable with plug-in termination. Timing initiate method is input voltage.
Omron H3Y-4 AC200-230 30S Time Delay Relay, 4PDT, 1-30 Sec
MPNH3Y-4 AC200-230 30S
Active
Omron H3Y Series, Time Delay Relay, 4PDT (4 Form C), 1 Sec ~ 30 Sec Delay, 3A @ 250VAC, 200 ~ 230VAC Supply, Socketable, Plug In Termination.
$49.53 – $135.21Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | H3Y |
| Parameter | Value |
|---|---|
| Function | Off-Delay, On-Delay |
| Parameter | Value |
|---|---|
| Delay time range | 1 Sec ~ 30 Sec |
| Timing adjustment method | Hand Dial |
| Timing initiate method | Input Voltage |
| Parameter | Value |
|---|---|
| Supply voltage | 200 ~ 230VAC |
| Parameter | Value |
|---|---|
| Contact rating @ voltage | 3A @ 250VAC |
| Contact circuit (Form) | 4PDT (4 Form C) |
| Relay type | Mechanical Relay |
| Parameter | Value |
|---|---|
| Mounting type | Socketable |
| Termination style | Plug In |
Product details
Frequently asked questions
What is the delay range and how is it adjusted?
The delay is adjustable from 1 second to 30 seconds using a hand dial on the relay face. No external programmer or DIP switches are needed.
What is the contact configuration and rating?
It provides 4PDT (4 Form C) contacts rated at 3 A at 250 VAC. This is sufficient for pilot duty, small contactor coils, and indicator loads.
MPN
H3Y-4 AC200-230 30S
